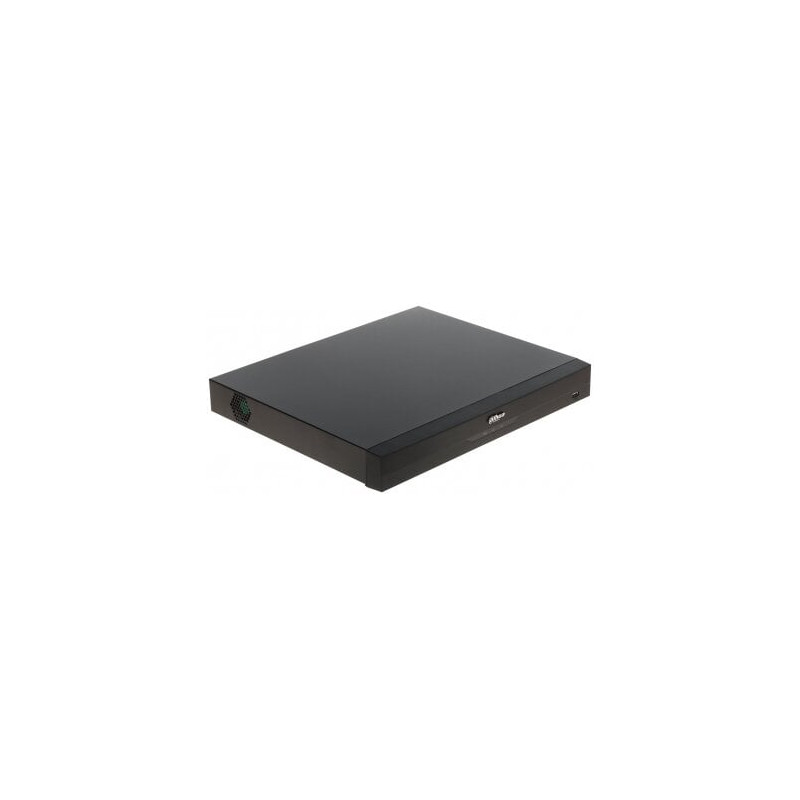

Network Video Recorder Dahua NVR4216-16P-EI

SKU:DAHNVR421616PEI

Availability: On Stock

Type: Network video recorder
Model: Dahua NVR4216-16P-EI
Series: WizSense
PoE: Yes
Number of channels: 16
Maximum resolution per channel: 12 Mpix
Hard drive support: 2 HDD (up to 2x20TB)
Recording/output speed: 160 Mbps / 80 Mbps
Audio inputs/outputs: 1 RCA input / 1 RCA output
Connections: 2x USB, RJ45 1000 Mbps
Video outputs: 1 HDMI, 1 VGA

€395.35

Tax included Delivery within 1–3 business days

Description
Product Details

General
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb, Local GUI
AI by RecorderFace detection, face recognition, perimeter protection, and SMD Plus
AI by CameraFace detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Perimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)All channels (8 targets/s)
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels)All channels (8 targets/s)
Face Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels)All channels (8 targets/s)
SMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by CameraAll channels (16 targets/s)
Access Channel16 channels
Network BandwidthAI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Resolution16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Decoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps
Video Output1 HDMI, 1 VGA; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16
Third-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
Video CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio CompressionG.711a; G.711u; PCM; G726
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
BrowserChrome; IE9 and later; Firefox
Multi-channel PlaybackUp to 16 channels
Record ModeGeneral, motion detection; intelligent; alarm
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback
Disk GroupYes
General AlarmMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm LinkageRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Audio Input1-channel RCA
Audio Output1-channel RCA
Alarm Input4 channels
Alarm Output2 channels
Disk Interface2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-2321
USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI1
VGA1
Network Port1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port16 ports, 10/100 Mbps, IEEE 802.3 af/at
Power Supply100–240 VAC, 47-63 Hz
Power ConsumptionTotal output of NVR is <10 W (without HDD); Total output power of PoE is 130W, maximum output power of a single port is 25.5W
Net Weight2.60 kg (5.73 lb)
Gross Weight3.80 kg (8.38 lb)
Product Dimensions375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H)
Packaging Dimensions451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") (W × L × H)
Operating Temperature–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity10%–93% (RH), non-condensing
InstallationRack or desktop
CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014
