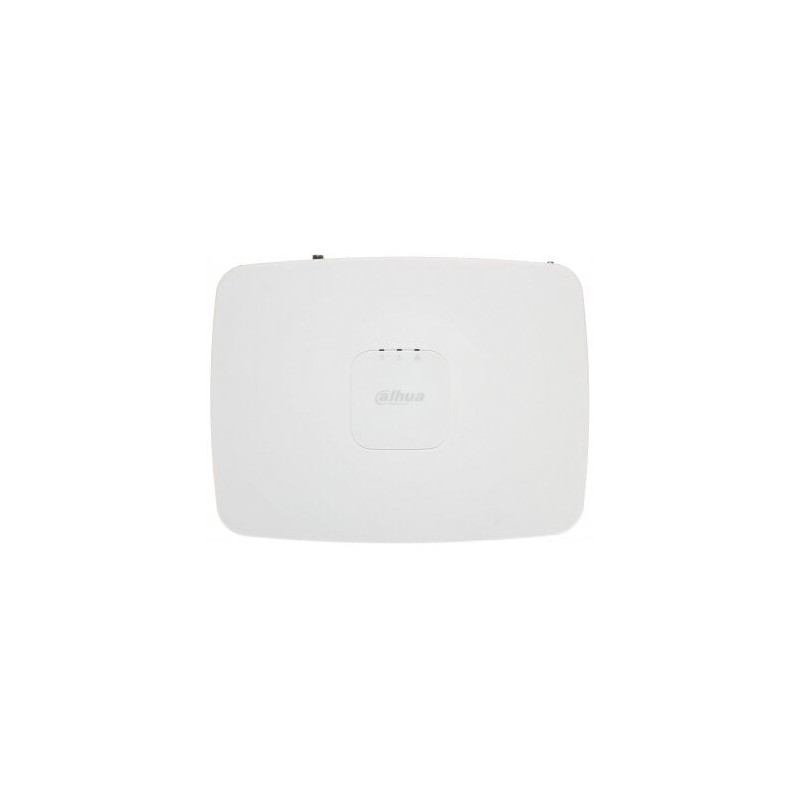

Network video recorder Dahua NVR2108-8P-4KS3

SKU:DAHNVR21088P4KS3

Availability: On Stock

Type: Network Video Recorder (NVR)
Model: Dahua NVR2108-8P-4KS3
PoE Channels: 8 x 10/100 Mbps
Recording/Incoming/Outgoing Bandwidth: 144/144/72 Mbps
Max Video Resolution: up to 12 MP
Video Outputs: 1 x HDMI, 1 x VGA
Audio: input/output
USB Ports: 2 x USB
Video Compression: H.265+

€178.17

Tax included Delivery within 1–3 business days

Description
Product Details

Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI by Recorder SMD
AI by Camera Perimeter protection; SMD
Perimeter Performance of AI by Camera (Number of Channels) All channels (4 targets/s)
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera All channels (8 targets/s)
Access Channel 4 channels
Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fpsAI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps
Video Output 1 HDMI, 1 VGAHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1/4
Third-party Camera Access ONVIF
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726;
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access iOS; Android
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Multi-channel Playback Up to 4 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
General Alarm Motion detection; camera external alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Perimeter protection; SMD Plus
Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels are optional)
Alarm Output NA (1-channel 12 V 1 A output is optional)
Disk Interface 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
PoE Port 4 ports, 10/100 Mbps, IEEE 802.3 af/at
Power Supply 53 V DC, 1.22 A
Power Consumption Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Net Weight 0.48 kg (1.06 lb)
Gross Weight 1.42 kg (3.13 lb)
Product Dimensions 204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Packaging Dimensions 364.0 mm × 96.0 mm × 261.0 mm(14.33" × 3.78" × 10.28")(W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Certifications CE-LVD: IEC 62368-1:2014CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
