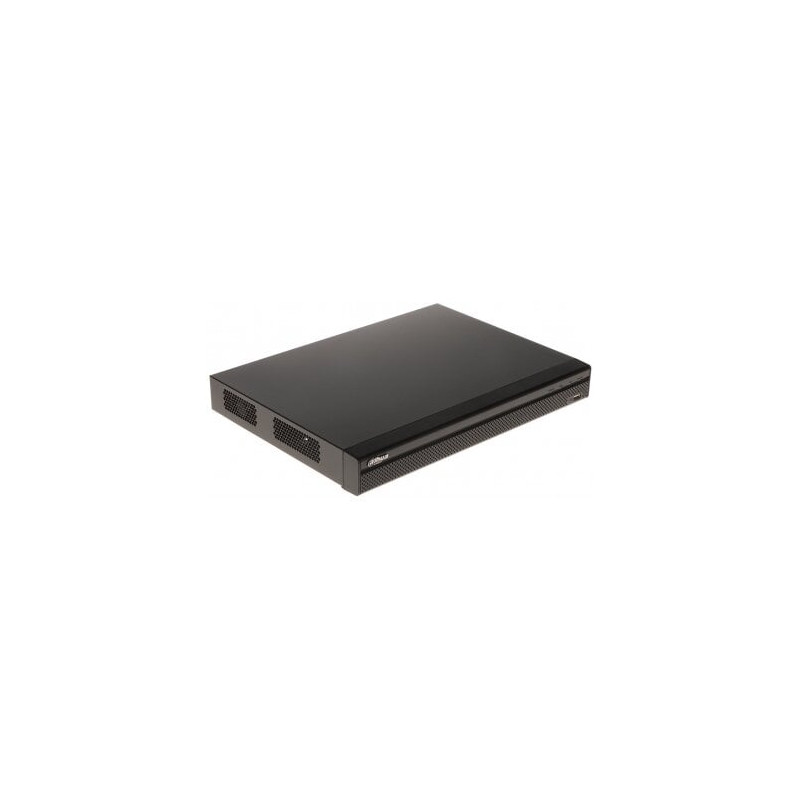

Network video recorder (NVR) Dahua NVR4232-4KS3

SKU:DAHNVR42324KS3

Availability: On Stock

Type: Network Video Recorder (NVR)
Model: Dahua NVR4232-4KS3
Channels: 32
Maximum resolution per channel: Up to 12MP
Hard drive support: 2 HDDs, up to 20TB
Bandwidth: 160 Mbps (input) / 60 Mbps (output)
Audio input/output: 1 in / 1 out (RCA)
Network interface: 1000 Mbps RJ45
USB ports: 2
Video output: HDMI, VGA

€224.37

Tax included Delivery within 1–3 business days

Description
Product Details

Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI by Recorder SMD Plus
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Performance of AI by Camera (Number of Channels) 6 channels
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels) 6 channels
Face Recognition Performance of AI by Camera (Number of Channels) 6 channels
SMD Plus by Recorder 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 6 channels
Access Channel 32 channels
Network Bandwidth AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
Video Output 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Compression Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM; G726
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Multi-channel Playback Up to 16 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
Disk Group Yes
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels (1-channel 12 V 1 A output）
Disk Interface 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply 12 VDC, 4 A
Power Consumption Total output of NVR is <10 W(without HDD)
Net Weight 1.49 kg (3.28 lb)
Gross Weight 2.77 kg (6.11 lb)
Product Dimensions 375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
