New Out-of-Stock

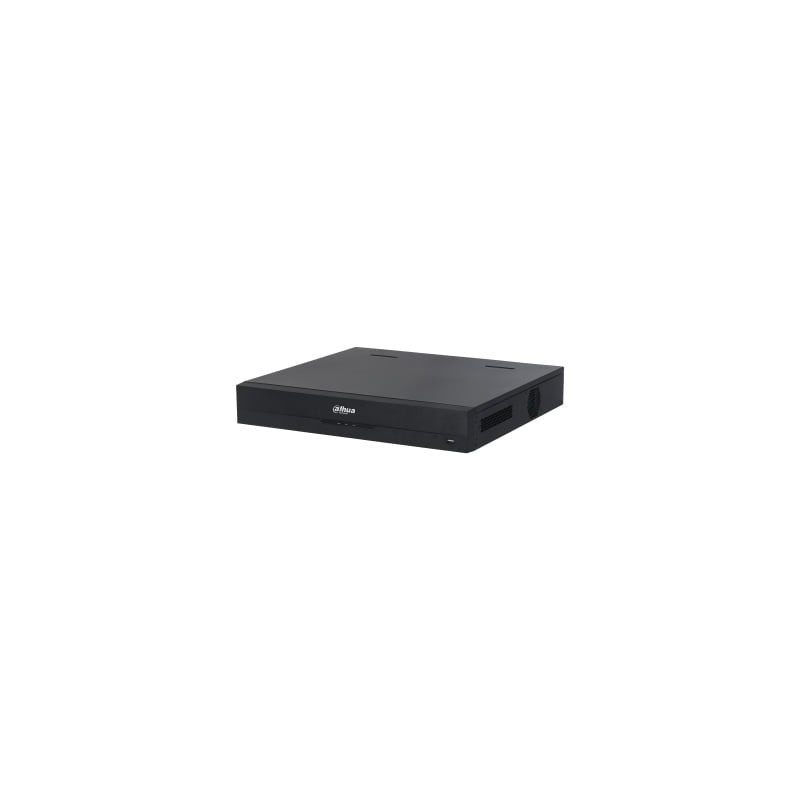

Network Video Recorder NVR Dahua WizSense NVR5432-EI

SKU:NVR5432EI

Availability: Out-of-Stock

Type: Network Video Recorder (NVR)
Model: Dahua NVR5432-EI
Number of Channels: 32
Data Throughput: 384 Mbps IN/OUT
Maximum Resolution: Up to 32 MP per channel
Technology: WizSense
Face Recognition: Up to 20 faces
Photo Storage: Up to 20,000 photos
Alarm Input/Output: Yes
Audio Input/Output: Yes
Video Outputs: 2x VGA, 2x HDMI
Compression: H.265+
Advanced Detection Technology: SMD Plus
Hard Drives: 4 HDD (up to 20 TB)

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€569.74

Tax included

Description
Product Details

General
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb, Local GUI
AI by RecorderFace detection; face recognition; perimeter protection; SMD Plus
AI by CameraFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
AcuPick AI by Camera + RecorderMax. 32-channel, 1 combined event per channel/s
Perimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)All channels (16 targets/s)
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels)16 channels
Face Database CapacityUp to 20 face databases with 20,000 images, total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions, and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s; 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels)16 channels
SMD Plus by Recorder8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, and lighting condition change
SMD Plus by CameraAll channels (32 targets/s)
Metadata Performance of AI by Camera (Number of Channels)8 channels
Human AttributesTop color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella
Motor Vehicle AttributesLicense plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location
Non-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmet
ANPR by Camera (Number of Channels)All channels (8 targets/s)
License Plate Database CapacityCreate up to 20,000 plate numbers; Blocklist and allowlist
Access Channel32 channels
Network BandwidthAI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing
Resolution32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF
Decoding CapabilityAI disabled: 2-channel 32 MP@25 fps, 2-channel 24 MP@25 fps, 4-channel 16 MP@30 fps, 5-channel 12 MP@30 fps, 8-channel 8 MP@30 fps, 10-channel 6 MP@30 fps, 12-channel 5 MP@30 fps, 16-channel 4 MP@30 fps, 32-channel 1080p@30 fps; AI enabled: 1-channel 32 MP@25 fps, 1-channel 24 MP@25 fps, 2-channel 16 MP@30 fps, 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 5 MP@30 fps, 12-channel 4 MP@30 fps, 24-channel 1080p@30 fps
Video Output2 VGA, 2 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; Heterogeneous video source output for HDMI1 and HDMI2; Simultaneous video source output for VGA1 and HDMI1; Simultaneous video source output for VGA2 and HDMI2
Multi-screen DisplayMain screen: 1/4/8/9/16/25/36; Sub screen: 1/4/8/9/16
Third-party Camera AccessONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio CompressionG.711a; G.711u; PCM; G726
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
BrowserChrome; IE; Safari; Edge; Firefox
Network ModeMulti-address mode, load balance, fault tolerance, and other network port binding modes
Multi-channel PlaybackUp to 16 channels
Record ModeGeneral, motion detection, intelligent, alarm, POS
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Disk GroupYES
General AlarmMotion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
Anomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Intelligent AlarmFace detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm LinkageRecord; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Audio Input1-channel RCA
Audio Output2-channel RCA
Alarm Input16 channels
Alarm Output6 channels (1-channel 12 V 1 A output)
Disk Interface4 SATA ports, each disk can contain up to 20 TB (limit varies depending on environment temperature)
eSATA1
RS-2321
RS-4851 (half-duplex serial communication)
USB3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
HDMI2
VGA2
Network Port2 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply100–240 VAC, 50-60 Hz
Power ConsumptionTotal output of NVR is ≤ 13 W (without HDD)
Net Weight4.74 kg (10.45 lb)
Gross Weight6.11 kg (13.47 lb)
Product Dimensions440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × 2.76") (W × D × H)
Packaging Dimensions530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27") (W × D × H)
Operating Temperature–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity10%–93% (RH), non-condensing
InstallationRack or desktop
CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014
