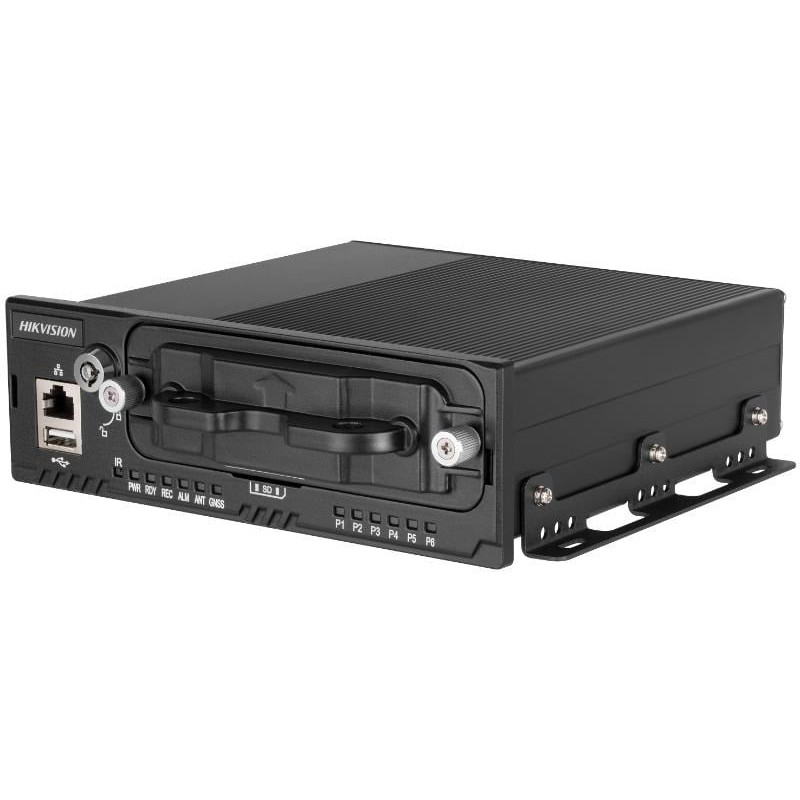

4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TBUser-friendly GUI providing easy and flexible operations.Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.Specialized aviation connectors ensuring signal stability.Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.Build-in super-capacitor prev
Automotive and RailwayEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
EnvironmentCE-RoHS (2011/65/EU and amendment 2015/863/EU)
SafetyCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
Auxiliary Interface
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 button input
Alarm Output2 relay signal outputs
Network InterfaceFront panel :1 ×10M/100M RJ45
Rear panel: 1 × 10M/100M 6-pin aviation connector
Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
Sensor-in4 high/low level signal inputs
Serial Port1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
HDD/SSD data can be exported locally via this converter (optional)
Hard Disk Case with heating function (optional)
SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
Video/Audio Input
IP Camera4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
Two-way Audio1, integrated in EXT.DEV interface
Video/Audio Output
Audio Output1, integrated in EXT.DEV interface
Video OutputMain output: 1, integrated in EXT.DEV interface. VGA: 1
Wireless Network
3G/4G Dialing1 × 4G card slot, 1 × FAKRA antenna
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna
(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
