New

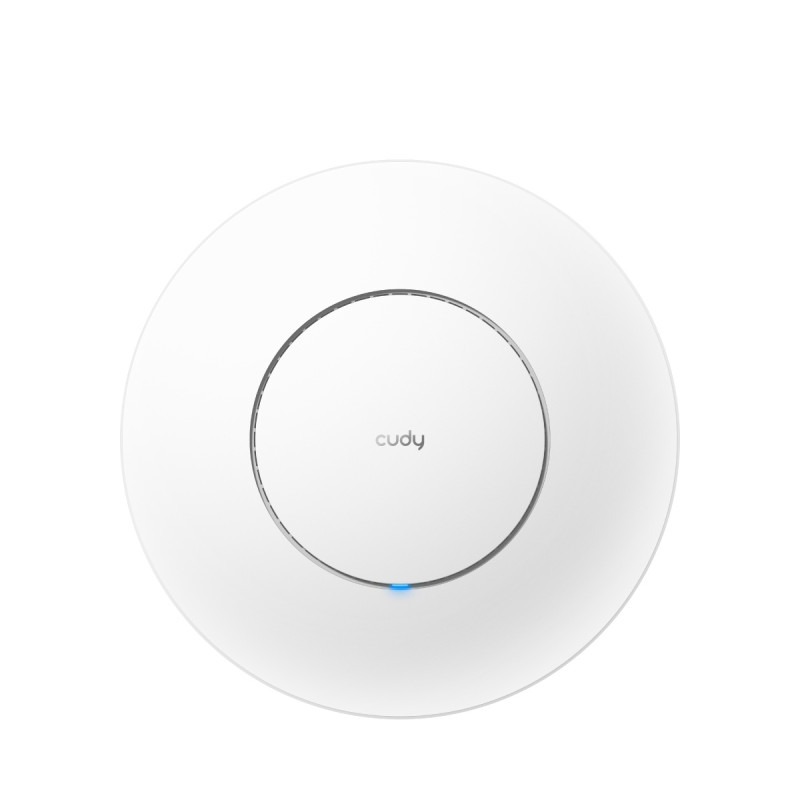

Access point CUDY AP1300_P (Wi-Fi 5)

SKU:CUDYAP1300P
On Stock
  • Type: Access point
  • Model: CUDY AP1300_P
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 1 x 1 Gbps RJ45
  • Wi-Fi speed: to 300 Mbps @ 2,4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 11 W
  • Power input: 802.3af/at PoE or Passive PoE or 12V 1A DC
  • Operating temperature: from -10°C to 65°C
  • Includes PoE adapter
€58.36
Tax included Delivery within 1–3 business days
Quantity

  • General
  • Model versionAP1300_P
  • CPU880 MHz Dual-Core Processors
  • ChipsetMT7621DA + MT7613B + MT7603E
  • Flash Memory16 MB (128 Mbit)
  • RAM128 MB (1 Gbit) DDR
  • Wireless StandardsWi-Fi 5 (802.11ac/n/g/b/a)
  • Frequency Bands2.4 GHz and 5 GHz
  • Signal Rate5 GHz: Up to 867 Mbps, 2.4 GHz: Up to 300 Mbps
  • Total Wireless Speed1167 Mbps
  • Bandwidth Support20/40/80 MHz
  • Transmit Power (CE)<20 dBm (2.4 GHz), <23 dBm (5.15 - 5.25 GHz)
  • Transmit Power (FCC)<30 dBm (2.4 GHz), <30 dBm (5.15 - 5.825 GHz)
  • Wi-Fi Antennas4 Internal Omni-directional Antennas
  • Wireless FeaturesFast Roaming, Band Steering, Beamforming, MU-MIMO, QoS (WMM), Rate Limit, Wireless Scheduling, Reboot Schedule, Transmit Power Control, Multiple SSID, Enable/Disable Radio
  • Mesh SupportYes (requires Cudy Mesh unit/router with firmware > v15.28)
  • Operation ModesAccess Point, Wireless Router, Wireless Extender, WISP Mode, Mesh (Satellite)
  • Ethernet Interface1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3af PoE and Passive PoE)
  • Physical Buttons1× Reset Button
  • Power Supply802.3af/at PoE, 24–57 V Passive PoE (+4,5pins; -7,8pins), 12V DC
  • Power Input Options1× DC Jack, PoE via Ethernet Port
  • Dimensions232 × 232 × 57.1 mm
  • Mounting OptionsCeiling Mount, Wall Mount (mounting kit included)
  • Operating Temperature0–40 °C (32–104 °F)
  • Storage Temperature-40–70 °C (-40–158 °F)
  • Operating Humidity10–90% RH (non-condensing)
  • Storage Humidity5–90% RH (non-condensing)
  • Wireless SecurityWPA-PSK, WPA2-PSK, WPA/WPA2-PSK, Access Control, MAC Filtering, Wireless Client Isolation
  • VPN SupportZerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP
  • DNS PrivacyDNS over TLS (Cloudflare, Google, Quad9)
  • System RequirementsWindows, macOS, Linux, Unix; modern browser (Firefox ≥12, Chrome ≥20, Safari ≥4)
  • Package ContentsAP1300_P, 48 V Passive PoE Adapter, Mounting Kit, Installation Guide
