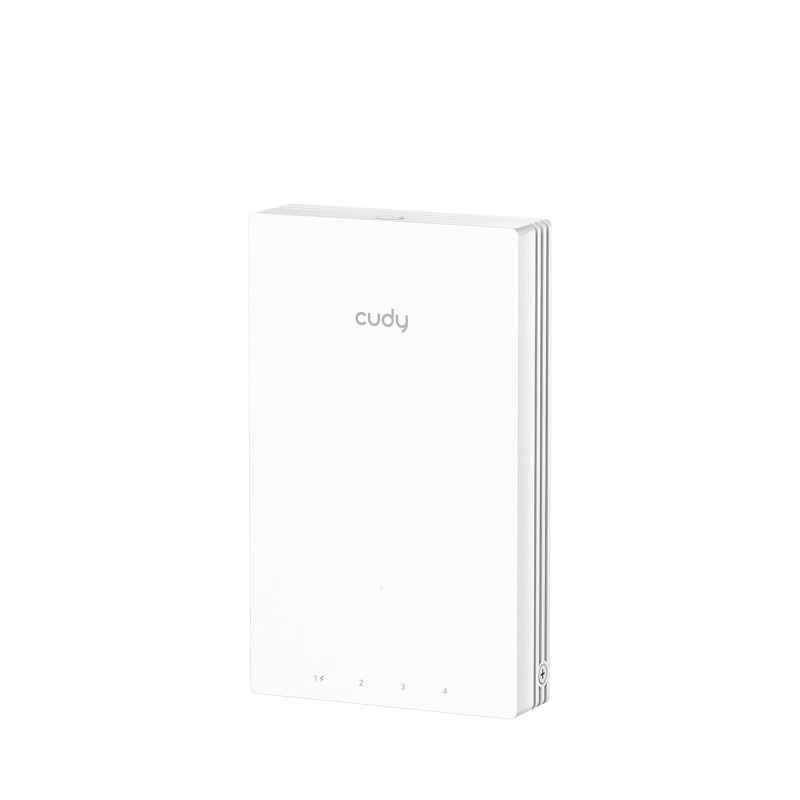

Access point CUDY AP3000 Wall (Wi-Fi 6)

SKU:CUDYAP3000W
On Stock
  • Type: Access point
  • Model: CUDY AP3000 Wall 1.0
  • Wi-Fi standard: Wi-Fi 6
  • Ports: 5 x 1 Gbps RJ45
  • Wi-Fi speed: to 574 Mbps @ 2,4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 80 m
  • Power consumption: ≤ 12 W
  • Power input: 802.3af/at PoE; 48V Passive PoE
  • Operating temperature: from 0°C to 40°C
€73.23
Tax included Delivery within 1–3 business days
Quantity
compare_arrows add to compare

  • General
  • Model VersionAP3000 Wall 1.0
  • CPU1.3 GHz Dual-Core CPU
  • Flash/ROM128 MB (1 Gbit) NAND
  • DDR/RAM256 MB (2 Gbit) DDR3
  • 5 GHz Wi-Fi Speed2402 Mbps
  • 2.4 GHz Wi-Fi Speed574 Mbps
  • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO) with an Extra Stream
  • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
  • Wi-Fi Antennas3× Internal
  • 5 GHz Antenna Gain Max7.08 dBi (US), 6.52 dBi (EU)
  • 2.4 GHz Antenna Gain Max3.17 dBi
  • FEM or PA/LNA5 GHz: 3× Internal, 2.4 GHz: 2× Internal
  • BeamformingTrue
  • Range PerformanceMax: 80 m (262 ft)
  • Wall PerformanceTwo wooden walls < 10 cm, One concrete wall < 20 cm
  • Gigabit RJ45 Ports5
  • Ethernet NotesBack port accepts PoE; one front port supports PoE passthrough
  • LED IndicatorsSystem
  • Physical ButtonsReset Button, LED On/Off Button (configurable)
  • Power InputPoE via Ethernet Port
  • Power MethodsPassive PoE, 802.3af/at PoE
  • Passive PoE Voltage48V
  • Max Power Consumption12W (48V PoE)
  • Idle Power Consumption5W (48V PoE)
  • Advanced FeaturesHardware Watchdog
  • EMS ProtectionESD Contact: 4kV, Air: 8kV
  • Operating Temperature0°C ~ 40°C (14°F ~ 149°F)
  • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
  • Operating Humidity10% ~ 90% non-condensing
  • Storage Humidity5% ~ 90% non-condensing
  • CertificationsFCC, CE
  • Installation TypeWall-mount
  • Dimensions143×86×27.6 mm (5.63×3.39×1.09 inches)
  • Product Weight298.6 g (10.53 oz.)
CUDYAP3000W
