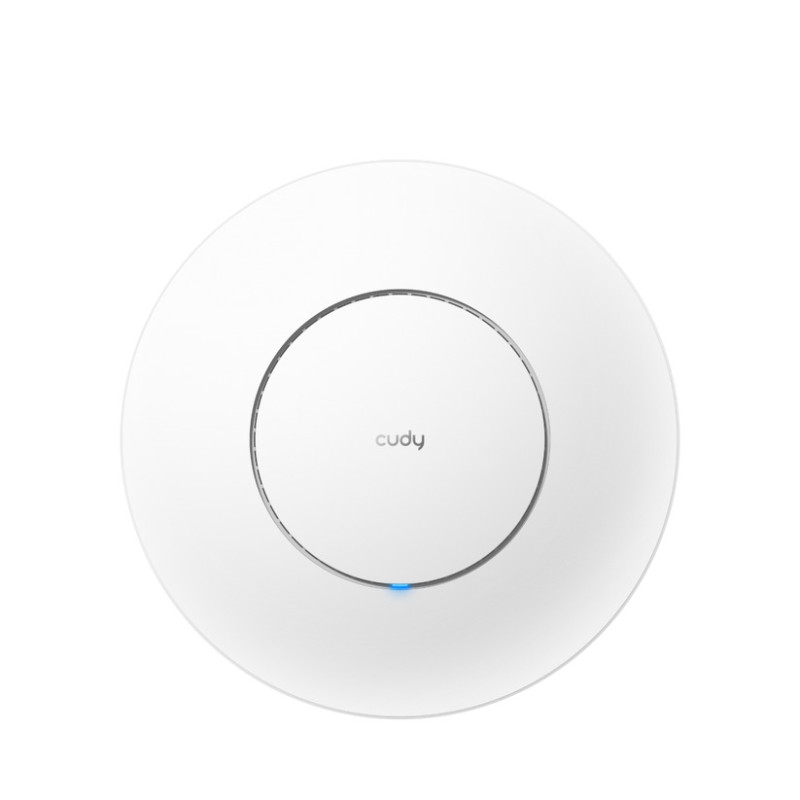

Access point CUDY AP1300 (Wi-Fi 5)

SKU:CUDYAP1300
On Stock
  • Type: Access point
  • Model: CUDY AP1300
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 1 x 1 Gbps RJ45
  • Wi-Fi speed: to 300 Mbps @ 2,4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 11 W
  • Power input: 802.3af/at PoE or Passive PoE or 12V 1A DC
  • Operating temperature: from -10°C to 65°C
€43.76
Tax included Delivery within 1–3 business days
Quantity
compare_arrows add to compare

  • General
  • Model VersionAP1300 1.0
  • CPU ChipsetMT7621DAT
  • CPU Details880 MHz Dual-Core CPU
  • Flash/ROM16 MB (128 Mbit) NOR
  • DDR/RAM128 MB (1 Gbit) DDR3
  • 5 GHz Wi-Fi Speed867 Mbps
  • 2.4 GHz Wi-Fi Speed300 Mbps
  • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
  • Wi-Fi Antennas4× Internal
  • 5 GHz Antenna Gain Max4.64 dBi
  • 2.4 GHz Antenna Gain Max5.31 dBi
  • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • BeamformingTrue
  • Range PerformanceMax: 170 m (558 ft); Indoor WiFi range varies depending on layout and wall materials
  • Wall PerformanceTwo wooden walls <10 cm (4"), One concrete wall <20 cm (7")
  • Gigabit RJ45 Ports1
  • Ethernet NotesAccepts PoE powering
  • LEDSystem
  • Physical ButtonsReset Button
  • Power InputDC Jack, PoE via Ethernet Port
  • Power MethodsDC, Passive PoE, 802.3at/af PoE
  • DC Input12V 1A
  • Passive PoE Input24 ~ 57V
  • Power AdapterAP1300 | DC Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC; AP1300_P | PoE Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 48V Passive PoE
  • Max Power ConsumptionMax (PoE): 11 W, Max (DC): 7.5 W
  • Idle Power Consumption4.008 W
  • AdvancedHardware Watchdog
  • EMSESD: Contact: 4kV; Air: 8kV
  • Operating Temperature-10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉)
  • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Operating Humidity10% ~ 90% non-condensing
  • Storage Humidity5% ~ 90% non-condensing
  • CertificationsFCC, CE
  • InstallationWall-mount, Ceiling-mount
  • DimensionΦ231.9 × 57.1 mm (Φ9.13 × 2.25 in)
  • Product Weight400 g (14.11 oz.)
  • Package ContentAP1300, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide
CUDYAP1300
