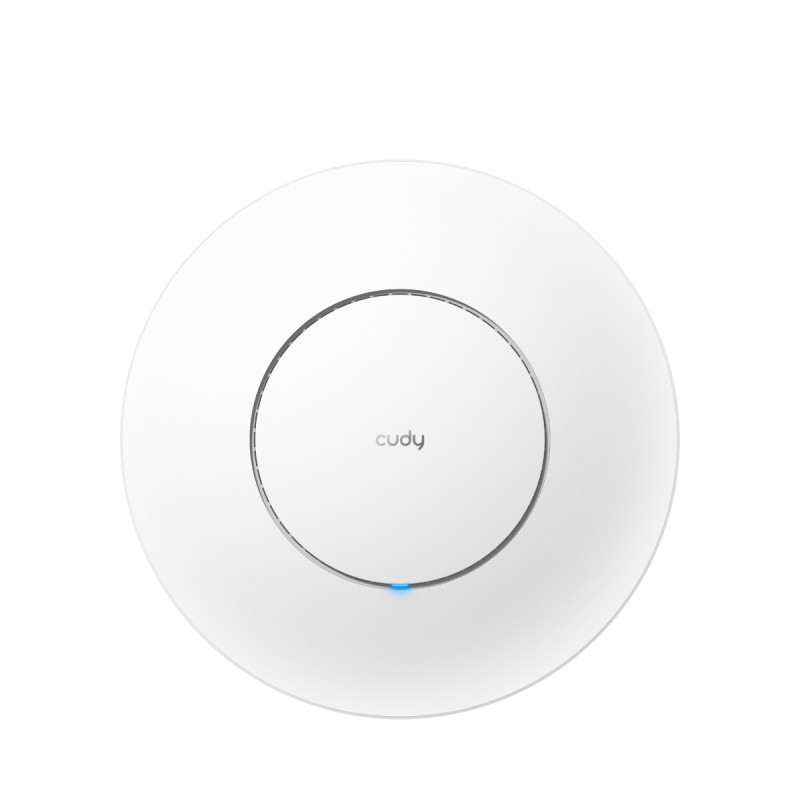

Access point CUDY AP3000 (Wi-Fi 6)

SKU:CUDYAP3000

Availability: Out-of-Stock

Type: Access point
Model: CUDY AP3000
Wi-Fi standard: Wi-Fi 6
Ports: 1 x 2,5 Gbps RJ45
Wi-Fi speed: to 574 Mbps @ 2,4 GHz; 2402 Mbps @ 5 GHz
MIMO technology: 2x2 @ 2,4 GHz; 3x3 @ 5 GHz
Operating distance: 200 m
Power consumption: ≤ 12 W
Power input: 802.3af/at PoE; Passive PoE; 12V 1,5A DC
Operating temperature: from -10°C to 60°C

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€64.30

Tax included

Description
Product Details

General
Model VersionAP3000 1.0
CPU1.3 GHz Dual-Core CPU
Flash/ROM256 MB (2 Gbit) NAND
DDR/RAM512 MB (4 Gbit) DDR4
5 GHz Wi-Fi Speed2402 Mbps
2.4 GHz Wi-Fi Speed574 Mbps
5 GHz Wi-Fi Streams3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas5× Internal
5 GHz Antenna Gain Max5.6 dBi
2.4 GHz Antenna Gain Max4.8 dBi
FEM or PA/LNA5 GHz: 3× External, 2.4 GHz: 2× External
BeamformingTrue
Range PerformanceMax: 200 m (656 ft); varies with layout and wall materials
Wall PerformanceTwo wooden walls (<10 cm/4") OR one concrete wall (<20 cm/7") or two concrete walls (<10 cm/4")
2.5G RJ45 Ports1
Ethernet NotesAccepts PoE powering
LEDSystem
Physical ButtonsReset Button
Power InputDC Jack, PoE via Ethernet Port
Power MethodsDC, 802.3at/af PoE, Passive PoE
DC Power12V 1.5A
Passive PoE48 ~ 57V
Power AdapterAP3000 | DC Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 12V 1.5A DC; AP3000_P | PoE Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 48V Passive PoE
Max Power Consumption12 W (48V PoE), 12 W (DC)
Idle Power Consumption6.1 W (48V PoE), 6.1 W (DC)
Advanced ReliabilityHardware Watchdog
EMS ProtectionESD: Contact 4kV, Air 8kV
Operating Temperature-10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
CertificationsFCC, CE
Installation OptionsWall-mount, Ceiling-mount
DimensionsΦ231.9×57.1 mm (Φ9.13×2.25 inches)
Product Weight494 g (17.43 oz.)
Package ContentAP3000, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide
