New

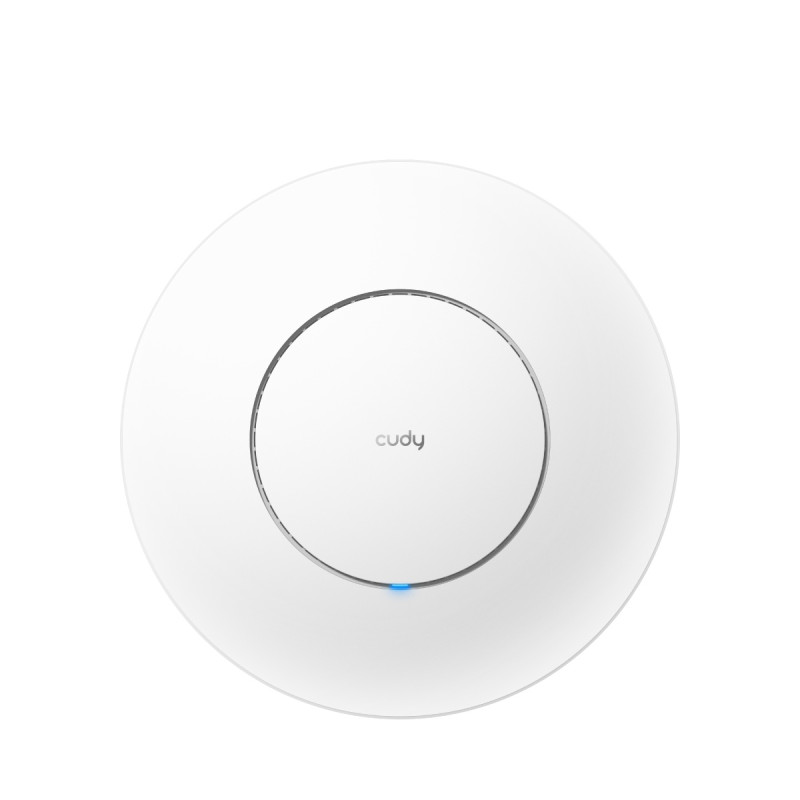

Access point CUDY AP1200 (Wi-Fi 5)

SKU:CUDYAP1200

Availability: On Stock

Type: Access point
Model: CUDY AP1200 1.0
Wi-Fi standard: Wi-Fi 5
Ports: 1 x 1 Gbps RJ45
Wi-Fi speed: to 300 Mbps @ 2,4 GHz; 867 Mbps @ 5 GHz
MIMO technology: 2x2 MIMO
Operating distance: 170 m
Power consumption: ≤ 12 W
Power input: 802.3af/at PoE; 24V Passive PoE; 12V 1A DC
Operating temperature: from 0°C to 40°C

€30.04

Tax included Delivery within 1–3 business days

Description
Product Details

General
CPU ChipsetMT7628DA
CPU Details580 MHz Single-Core CPU
Memory/Storage Flash/ROM8 MB (64 Mbit) NOR
Memory/Storage DDR/RAM64 MB (512 Mbit) DDR2
Wireless 5 GHz Wi-Fi Speed867 Mbps
Wireless 2.4 GHz Wi-Fi Speed300 Mbps
Wireless 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wireless 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas2× External
5 GHz Antenna Gain Max4.4 dBi
2.4 GHz Antenna Gain Max4.6 dBi
Detachable Wi-Fi Antennas ConnectorRP-SMA Female
BeamformingTrue
Range PerformanceMax: 170 m (558 ft), Park: 150 m (492 ft), Street: 50 m (164 ft), Woods: 30 m (98 ft)
Interfaces 10/100 Mbps RJ45 Ports1
Ethernet NotesAccepts PoE powering
LED5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, System
Physical ButtonsWPS Button, Reset Button
Power InputPoE via Ethernet Port
Power MethodsPassive PoE
Passive PoE Voltage24V
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC; Output: 24V Passive PoE
Max Power Consumption12 W
Idle Power Consumption2.5 W
Reliability Lightning/Surge Protection4kV
Reliability ESD Contact Protection4kV
Reliability ESD Air Protection8kV
Environment Operating Temperature-20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card-40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity0% ~ 100% non-condensing
Storage Humidity5% ~ 90% non-condensing
Ingress Protection RatingIP65 When device is installed vertically
CertificationsFCC, CE
Mechanical InstallationWall-mount, Pole-mount
Dimensions Device Body240×100×53.7 mm (9.45×3.94×2.11 inches)
Dimensions Each Antenna197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
Product Weight415 g (14.64 oz.)
