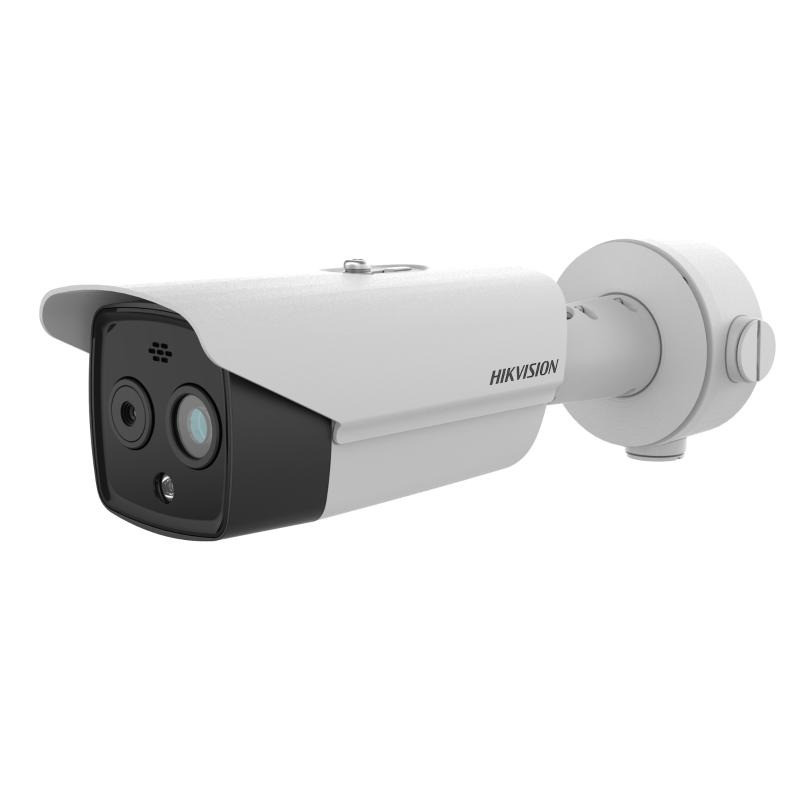

Hikvision HeatPro series thermal bullet DS-2TD2628T-3/QA

SKU:KIPDS2TD2628T3QA

Availability: On Stock

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
Video content analysis: vehicle/human classification
Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
Support smoke detection algorithm
Support smoking detection algorithm
Support sun-reflection filter and forklift alarm filter algorithm
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee

€788.71

Tax included Delivery within 1–3 business days

Patvirtinimai
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) FCC (ANSI C63.4;FCC Part15 sub B)
AplinkosaugaCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013 IK10: IEC 62262-2002
SaugumasCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

Garsinis ir vaizdinis signalas
Garso signalizacijaYes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
Vaizdinė signalizacijaYes. White light alarm with adjustable flashing frequencies
Baltos šviesos diapazonasUp to 30 m

Bendra
Matmenys321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Kalbos32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Energijos suvartojimas24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W 24VDC ± 25%: 0.22A to 0.75 A, max. 18W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Maitinimo šaltinis24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal block PoE (802.3af, class 3)
Apsaugos lygisIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing
Svoris1550 g (3.41 lb)
Darbinė temperatūra / drėgmė Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Vaizdo efektas
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Tikslinė spalvaYes. Supported in white hot and black hot mode.

Sąsaja
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Signalizacijos įvestis2, alarm input (0-5 VDC)
Signalizacijos išvestis2, alarm output (alarm response actions configurable)
Analoginė išvestis 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Garso įvestis1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Garso išvestis Linear level, impedance: 600 Ω
Bendravimo sąsaja1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

Tinklas
APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Klientas iVMS-4200, Hik-Connect
Vidinė atmintisMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
SaugumasUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Optinis modulis
DiafragmaF 1.6
Day & Night ModeIR Cut Filter with Auto Switch
Matymo laukas84.0° ×43.1° (H × V)
Židinio nuotolis 4.3 mm
Vaizdo jutiklis1/2.7" Progressive Scan CMOS
Minimalus apšvietimas0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Raiška 2688 × 1520
Užrakto greitis1 s to 1/100,000 s
WDR120 dB
Baltos spalvos balansasMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Išmanioji funkcija
Pagrindinės funkcijosFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperatūros tikslumas Max (±2°C, ±2 %)
Temperatūros matavimas3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperatūros diapazonas -20°C to 550°C (-4°F to 1022°F);
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Vaizdas ir garsas
Garso glaudinimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Pagrindinis srautas Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Vaizdo glaudinimas Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
