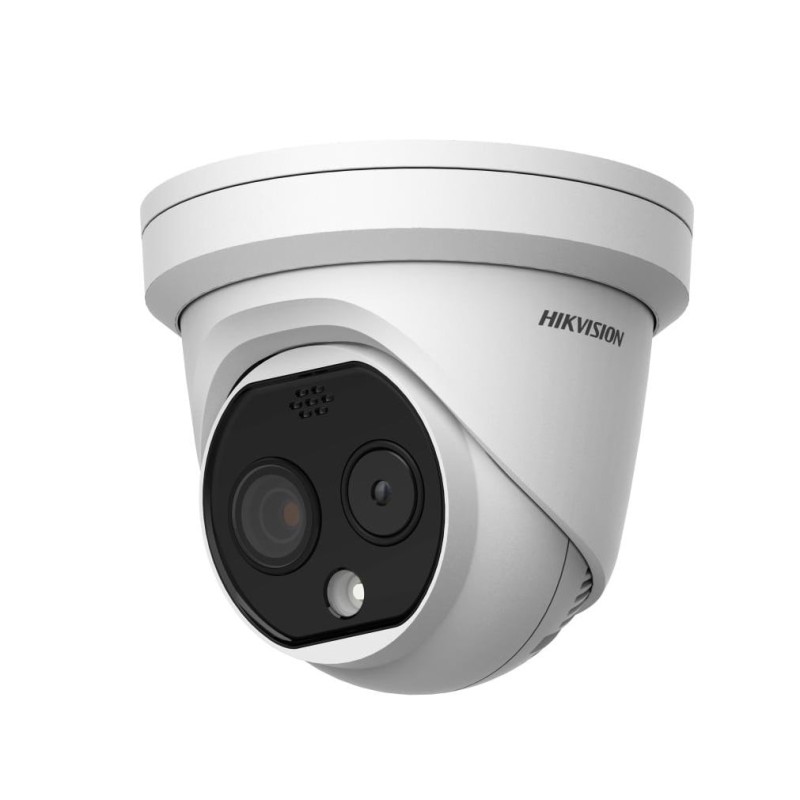

Hikvision HeatPro series thermal dome DS-2TD1228T-3/QA(B)

SKU:KIPDS2TD1228T3QAB

Availability: On Stock

€788.71

Tax included Delivery within 1–3 business days

Audible and Visual Alarm
Audio alarmYes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
Visual AlarmYes. White light alarm with adjustable flashing frequencies
White Light RangeUp to 30 m

General
Dimensions 138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 36 V to 57 V, 0.22 A to 0.14 A, Max 6.5 W
Power Supply12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Protection LevelIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection
Weight940 g (2.07 lb)
Working Temperature/HumidityTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Interface
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Output2, alarm output (alarm response actions configurable)
Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

Network
APIISAPI, HIKVISION SDK, ISUP,，and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Client iVMS-4200, Hik-Connect
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Optical Module
Day & Night ModeIR Cut Filter with Auto Switch
Field of View84.0° ×43.1° (H × V)
Focal Length 4.3 mm
Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Resolution 2688 × 1520
Shutter Speed1 s to 1/100,000 s
WDR120 dB
White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Smart Function
General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperature Accuracy Max (±2°C, ±2 %)
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Video and Audio
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
