The TP‑LINK Omada EAP773 BE9300 is a ceiling-mount tri-band Wi‑Fi 7 access point (2.4/5/6 GHz) offering up to 9.3 Gbps, with 10 Gb PoE+, MLO, and up to 24 SSIDs. Perfect for business environments: offices, schools, or hospitality. Fully compatible with Omada SDN, Captive portal, VLAN and roaming features.

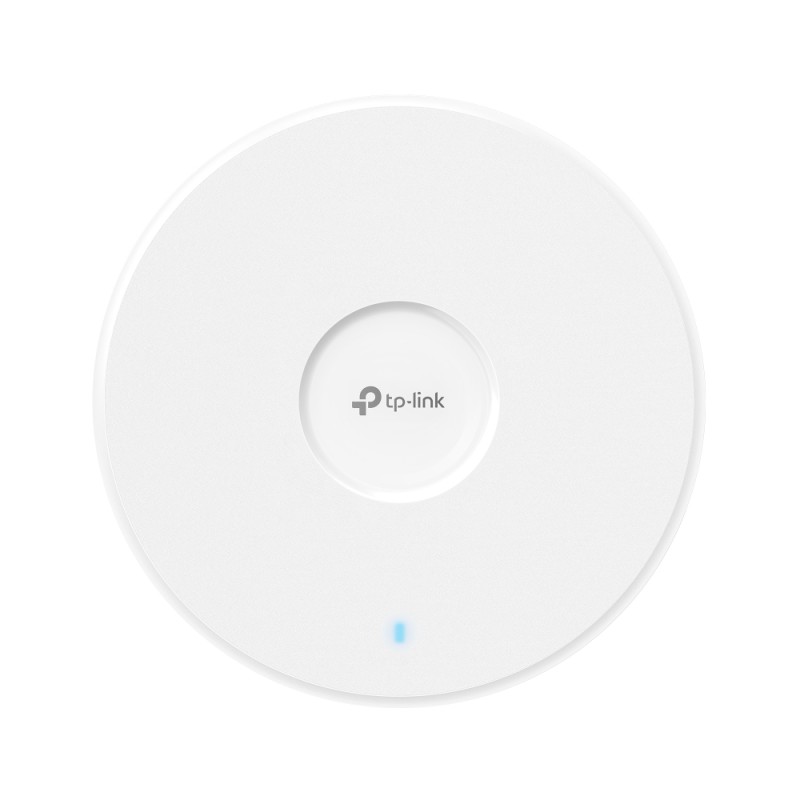

TP‑LINK Omada EAP773 is an ultra-thin ceiling-mount BE9300 Wi‑Fi 7 access point designed for high-density enterprise environments. Featuring next-gen tri-band Wi‑Fi 7 (6 GHz, 5 GHz, and 2.4 GHz), this device delivers a total throughput of up to 9214 Mbps. With integrated 10G PoE+ port, MLO, Multi-RUs, and full compatibility with Omada SDN, the EAP773 ensures top performance, minimal interference, and centralized management from the cloud or local controller.
The new 6 GHz band offers cleaner spectrum, less interference, and extended 320 MHz channels for more concurrent connections. MLO enables devices to transmit and receive data across multiple bands simultaneously. Multi-RUs boost efficiency by unlocking underutilized channels, enhancing redundancy and reliability.
The EAP773 is part of the Omada SDN ecosystem, working in harmony with routers, PoE switches, and other access points. Manage it via:
| Parameter | Value |
|---|---|
| Wi‑Fi speed | 2.4 GHz – 574 Mbps; 5 GHz – 2402 Mbps; 6 GHz – 5760 Mbps |
| Ethernet port | 1×10 Gb PoE+ (802.3bt/at) |
| Power supply | 802.3bt/at PoE or 12 V/2.5 A DC |
| Max power | 25.9 W (PoE full) |
| Antennas | 2× 3 dBi 2.4 GHz; 2× 3 dBi 5 GHz; 2× 3 dBi 6 GHz |
| Virtual SSIDs | 24 (8 per band) |
| Roaming | 802.11k/v/r |
| Mesh support | Yes |
| Security | WPA‑PSK/Enterprise, WPA2, WPA3, captive portal, SMS login |
| Management | Omada Cloud / OC200 / OC300 / local SW |
| Dimensions, weight | 220 × 220 × 32.5 mm; 736 g |
| Operating | 0‑40 °C, 10‑90 % non-condensing |
Data sheet
