New Out-of-Stock

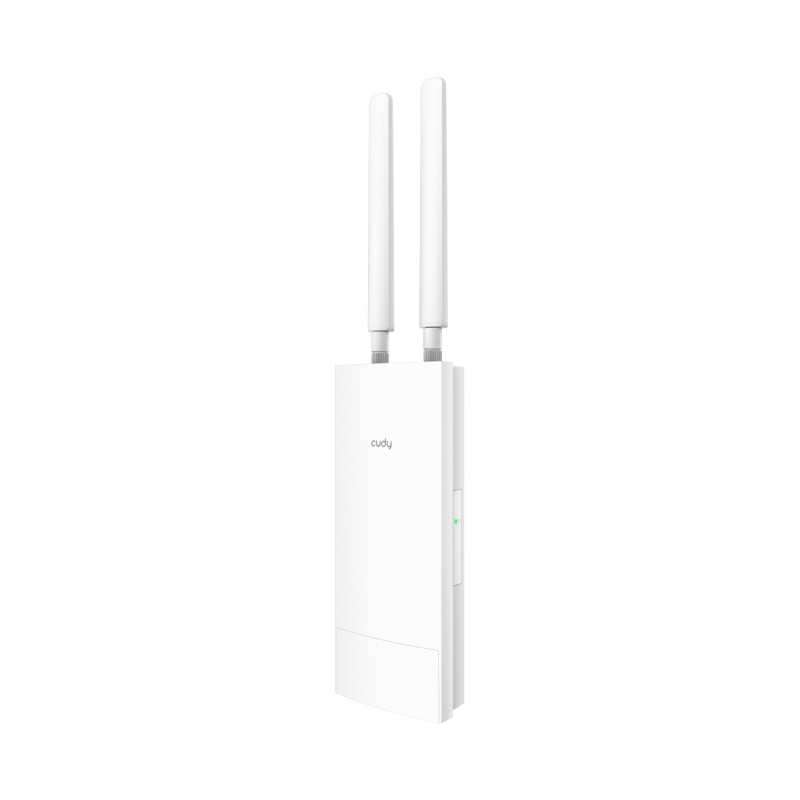

Access point CUDY AP3000 Outdoor (Wi-Fi 6, Outdoor mountable)

SKU:CUDYAP3000OUT

Availability: Out-of-Stock

Type: Access point
Model: CUDY AP3000 Outdoor 1.0
Wi-Fi standard: Wi-Fi 5
Ports: 1 x 1 Gbps RJ45
Wi-Fi speed: to 574 Mbps @ 2,4 GHz; 2402 Mbps @ 5 GHz
MIMO technology: 2x2 @ 2,4 GHz; 3x3 @ 5 GHz
Operating distance: 320 m
Power consumption: ≤ 18 W
Power input: 802.3at PoE or passive PoE
Operating temperature: from -40°C to 70°C
IP standard: IP65

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€91.35

Tax included

Description
Product Details

General
CPU ChipsetMT7981BA
CPU Details1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM256 MB (2 Gbit) NAND
Memory/Storage DDR/RAM512 MB (4 Gbit) DDR4
Wireless 5 GHz Wi-Fi Speed2402 Mbps
Wireless 2.4 GHz Wi-Fi Speed574 Mbps
Wireless 5 GHz Wi-Fi Streams3T3R (3×3 MIMO)
Wireless 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas5× Internal
5 GHz Antenna Gain Max5.6 dBi
2.4 GHz Antenna Gain Max4.8 dBi
FEM or PA/LNA5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
BeamformingTrue
Range PerformanceMax: 200 m (656 ft), Indoor range varies by layout and wall materials. See Wall Performance for details.
Wall PerformanceTwo wooden walls < 10 cm (4''); One concrete wall < 20 cm (7'') or two concrete walls < 10 cm (4'')
Interfaces 2.5G RJ45 Ports1
Ethernet NotesAccepts PoE powering
LEDSystem
Physical ButtonsReset Button
Power InputDC Jack, PoE via Ethernet Port
Power MethodsDC, 802.3at/af PoE, Passive PoE
DC Voltage12V 1.5A
Passive PoE Voltage48 ~ 57V
Power Adapter AP3000DC Adapter: Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1.5A DC
Power Adapter AP3000_PPoE Adapter: Input: 100 ~ 240 V, 50/60 Hz AC; Output: 48V Passive PoE
Max Power Consumption12 W (48 V PoE), 12 W (DC)
Idle Power Consumption6.1 W (48 V PoE), 6.1 W (DC)
Reliability AdvancedHardware Watchdog
Reliability ESD Contact Protection4kV
Reliability ESD Air Protection8kV
Environment Operating Temperature-10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
CertificationsFCC, CE
Mechanical InstallationWall-mount, Ceiling-mount
DimensionsΦ231.9×57.1 mm (Φ9.13×2.25 inches)
Product Weight494 g (17.43 oz.)
