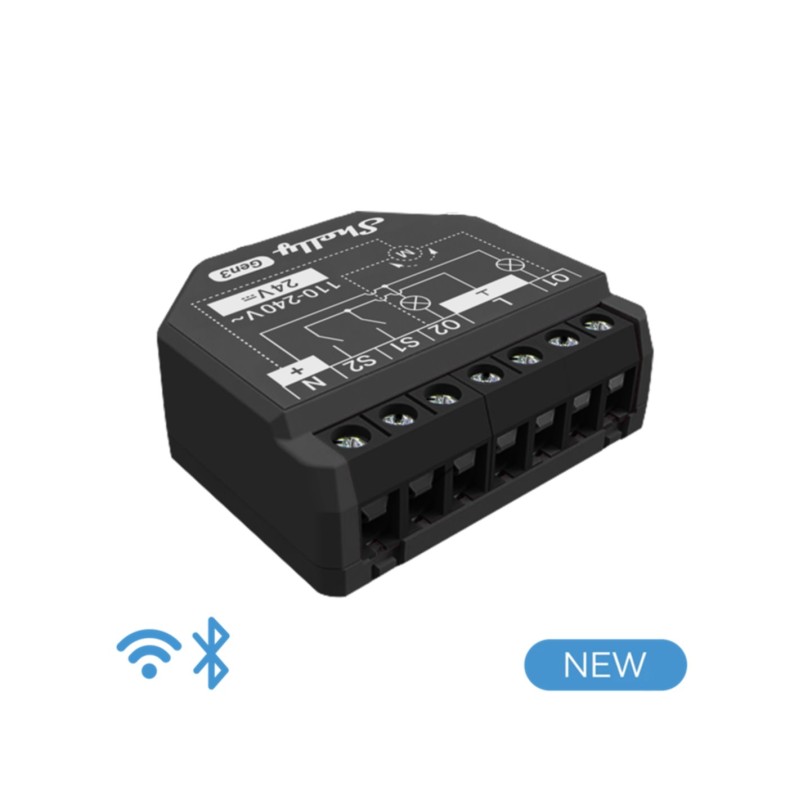

Shelly 2PM Gen3 2-channel Wi-Fi relay with power measurement and control

Wi-Fi-operated smart switch, 2 channels 16 А total current (18 A peak)

Shelly 2PM Gen3 is a smart switch with dual-channel control, power metering, and cover control

Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere

Perfect for retrofitting standard electrical wall boxes, power sockets, and light switches, even in spaces with limited room

• 2 channels on the same phase
• Power metering on each channel
• Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
• Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
• New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
• Improved durability of terminals
• Virtual components
• Wi-Fi range extender & Bluetooth gateway
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
• No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.

Product Details

Power supply AC

110-240V ±10%, 50/60Hz

CPU

ESP-Shelly-C38F

Warranty

36 months

Device temperature protection

Yes
Yes

Bluetooth

Yes

HTTP/HTTPS webhooks

Yes

Power supply DC

24 V ±10%,

Dry contacts

No

Roller shutter mode

Yes

Overload protection

Yes

Power measurement

Yes

Working without neutral line

No

Channels

2 Channels

Maximum load

16A

Operational temperature

-20ºC to +40ºC

Intelligent On/Off

Yes

Sunrise/Sunset

Yes

Weekly Schedule

Yes

UL Listed option

Yes

Wireless/WiFi Protocol

802.11 b/g/n

Radio frequency

2400 – 2500 MHz

Radio signal power

1mW

Range

up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

Size

37x42x16 mm
