Shelly Wall Display

Device identification

• Device name: Shelly Wall Display

• Device model: SAWD1

Short description

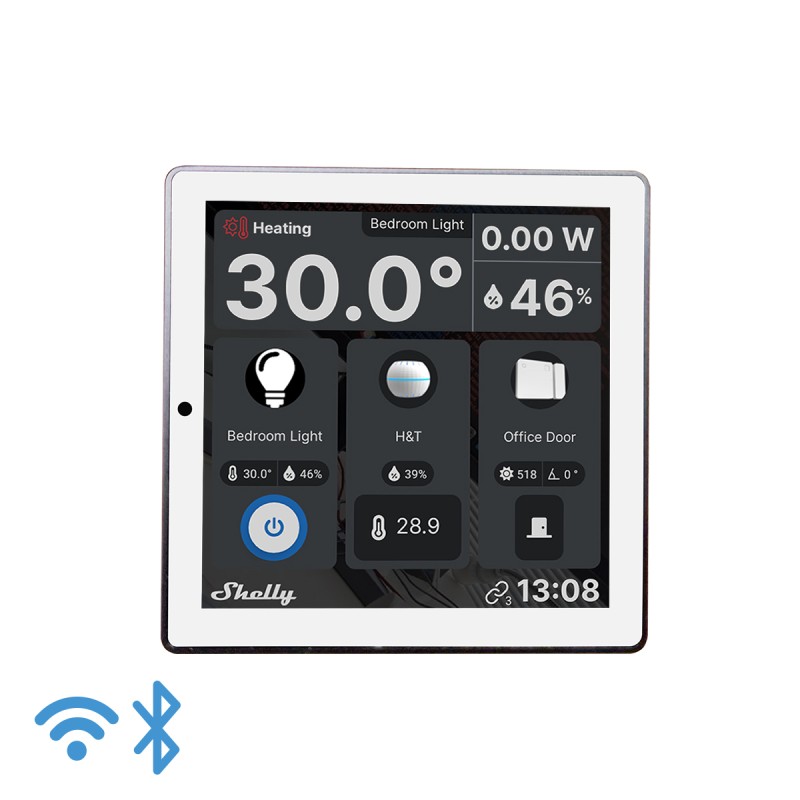

Shelly Wall Display (the Device) is a smart home control panel with a 4” color display and load circuit switching functionality.

Main features

• Touch-sensitive 4” color display

• Easy navigation and customizable home screen

• Integrated relay for appliance control

• Integrated temperature, humidity, and light sensors

• Power consumption monitoring of all devices in a room in your Shelly Smart Control account

Main applications

• Residential

• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

• Government/municipal

• University/college

Integrations

N/A

Simplified internal schematics

Device electrical interfaces

Inputs

• 1 switch/button input on screw terminal

• 2 power supply inputs on screw terminals: N and L

Outputs

• 1 relay output with power measurement on screw terminal

Connectivity

• Wi-Fi

• Bluetooth

Safety functions

N/A

Supported load types

• Resistive (incandescent bulbs, heating appliances)

• Capacitive (capacitor banks, electronic equipment, motor starting capacitors)

• Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

User interface

Touch-sensitive 4” color display with fully-customizable layout and following indications:

Specifications

Basic wiring diagrams

Legend
