- General
- Image Sensor1/2.8" CMOS
- Pixel2 MP
- Max. Resolution1920 (H) × 1080 (V)
- ROM4 GB
- RAM1 GB
- Electronic Shutter Speed1/1 s–1/30,000 s
- Scanning SystemProgressive
- Min. IlluminationColor: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
- Illumination Distance150 m (492.13 ft) (IR)
- Illuminator On/Off ControlZoom Prio; Manual; Smart IR
- Illuminator Number4 (IR)
- Focal Length4.8 mm–120 mm
- Max. ApertureF1.6–F3.5
- Field of ViewH: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
- Optical Zoom25×
- Focus ControlAuto; semi-auto; manual
- Close Focus Distance0.1 m–1.5 m (0.33 ft–4.92 ft)
- Iris ControlAuto; manual
- DORI DistanceDetect: 1,614 m; Observe: 646 m; Recognize: 323 m; Identify: 161 m
- Pan/Tilt RangePan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
- Manual Control SpeedPan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
- Preset SpeedPan: 400°/s; Tilt: 300°/s
- Presets300
- Tours8 (up to 32 presets per tour)
- Patterns5
- Scans5
- Power-off MemoryYes
- Idle MotionPreset; Pattern; Tour; Scan
- Video MetadataMotor/non-motor vehicle, face, human body detection and tracking with attribute extraction
- IVSTripwire, intrusion, climbing, loitering, object detection, people gathering, vehicle/human classification
- Face DetectionFace box, snapshot, enhancement, attribute (gender, age, glasses, mask, mustache), expression (8 types), cutout options
- People CountingEntry/exit/stay/queue detection; daily/weekly/monthly reports
- Auto TrackingYes
- SMDSMD 4.0
- AcupickTarget search using deep learning
- Auto PatrolPTZ linkage and patrol based on detected targets
- Video CompressionSmart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream 1)
- Streaming Capability3 streams
- Resolution1080p, 1.3M, 720p, D1, VGA, CIF
- Video Frame RateMain: 1080p/1.3M/720p@(1–50/60 fps); Sub1: D1/VGA/CIF@(1–25/30 fps); Sub2: 1080p/1.3M/720p@(1–25/30 fps)
- Bit Rate ControlCBR; VBR
- Video Bit RateH.264: 64 Kbps–10946 Kbps; H.265: 25 Kbps–6400 Kbps
- Day/NightAuto (ICR); Color; B/W
- BLCYes
- WDR120 dB
- White BalanceAuto, indoor, outdoor, ATW, manual, sodium lamp, natural light, street lamp
- Gain ControlAuto; manual
- Noise Reduction2D NR; 3D NR
- Motion DetectionYes
- Region of Interest (RoI)Yes
- Image StabilizationElectronic (EIS)
- DefogElectronic
- Digital Zoom16×
- Image Rotation180°
- Privacy MaskingUp to 24 areas (max 8 in one view)
- S/N Ratio≥55 dB
- Audio CompressionPCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723
- Network PortRJ-45 (10/100 Base-T)
- Network ProtocolsHTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, QoS, FTP, UPnP, ICMP, SNMP v1/v2c/v3, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCP, SSL
- InteroperabilityONVIF (Profile S&G&T), CGI, SDK
- Streaming MethodUnicast; Multicast
- User/Host20 (total bandwidth: 64 Mbps)
- StorageFTP, Micro SD (up to 512 GB), NAS
- Browser SupportIE 7+, Chrome 42–, Firefox 52–, Safari
- Management SoftwareSmart PSS, DSS, DMSS, Easy4ip, IVSS
- Mobile ClientiOS; Android
- CertificationsCE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB, ANSI C63.4-2014; UL60950-1 + CAN/CSA C22.2 No.60950-1
- Alarm I/O2 in / 1 out
- Audio I/O1 in / 1 out
- Two-way AudioYes
- Alarm LinkageCapture, preset, tour, pattern, recording, I/O trigger, audio, email
- Alarm EventsMotion, tampering, audio, network disconnection, IP conflict, SD card status, power exception
- Power Supply24 VDC, 2.5 A ± 25%, PoE+ (802.3at)
- Power ConsumptionBasic: 13 W; Max: 22 W (IR + PTZ + heater + fan)
- Operating Temperature–40 °C to +70 °C (–40 °F to +158 °F)
- Operating Humidity≤95%
- Protection RatingIP67, IK10, TVS 6000 V surge/lightning/voltage protection
- Product Dimensions332 mm × Φ190 mm (13.07" × Φ7.48")
- Net Weight4.7 kg (10.36 lb)
- Gross Weight8 kg (17.64 lb)

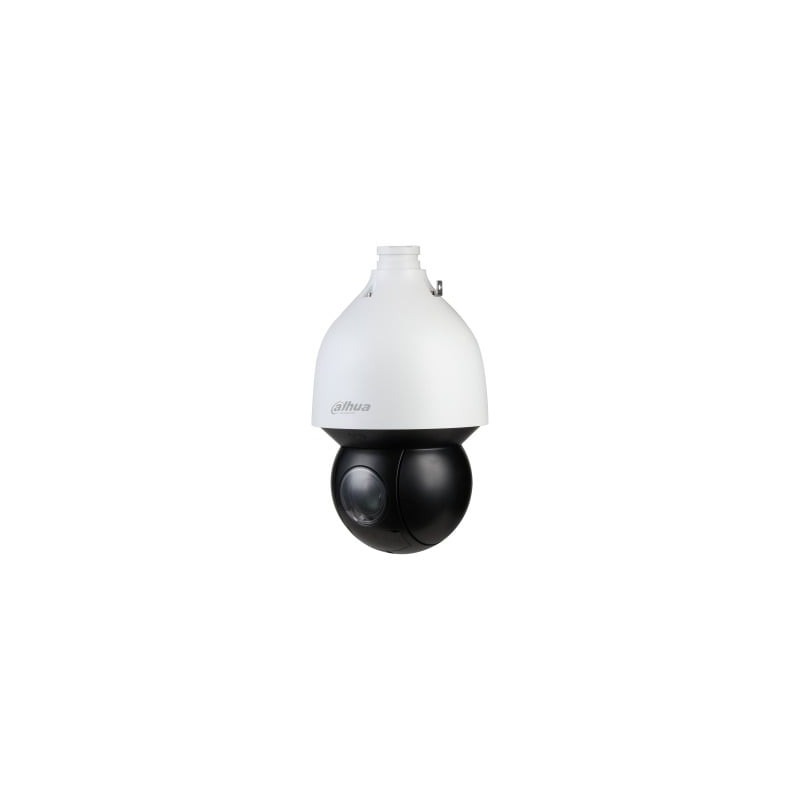

DAHPTZSD5A225GBHNR
