Hikvision 10.1" Monitor DS-KM9503

SKU:PSMDSKM9503
On Stock

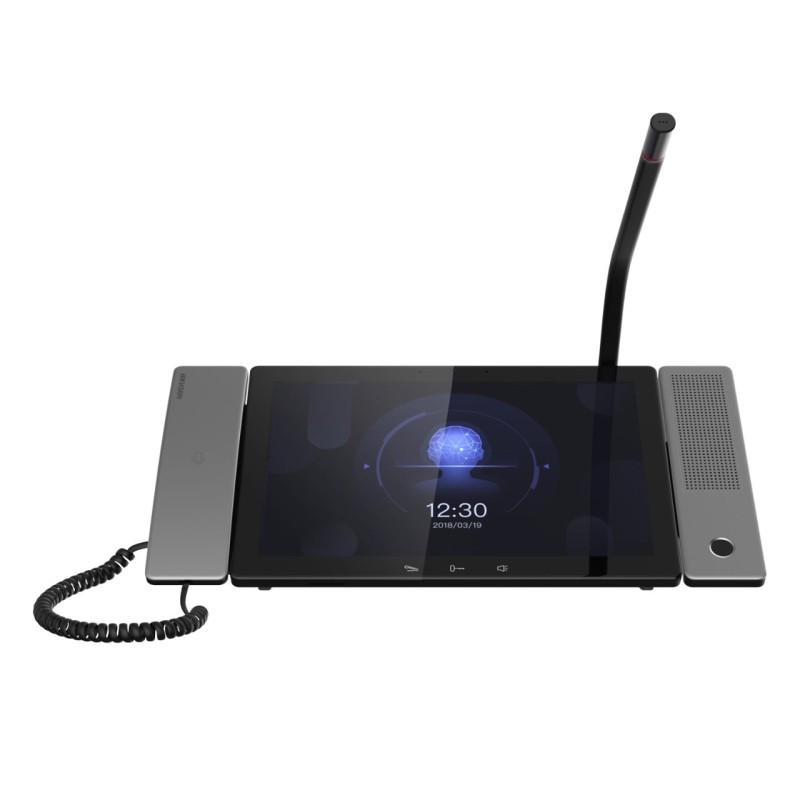

Hikvision 10.1" Monitor DS-KM9503
€1,155.79
Tax included Delivery within 1–3 business days
Quantity
compare_arrows add to compare

  • System parameters
  • Operating systemAndroid 7.1
  • ROM8 GB
  • RAM2 GB
  • CPUEmbedded processor
  • Display parameters
  • Screen size10.1-inch
  • Operation methodCapacitive touch screen
  • TypeIPS
  • Resolution1280 × 800
  • Video parameters
  • Supplement light/
  • Video compression standardH.264
  • FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
  • WDR/
  • Resolution2 MP
  • Audio parameters
  • Audio compression standardG.711U、G.711A
  • Audio inputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
  • Audio outputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable via software
  • Capacity
  • Linked network camera capacity128
  • SIP access10000
  • Network parameters
  • Communication protocol TCP/IP, SIP, RTSP
  • Wired network2 10/100/1000 M self-adaptive Ethernet
  • Wi-Fi/
  • 3G/4G/
  • Zigbee/
  • Device interfaces
  • Alarm input2
  • Network interface2
  • TAMPER0
  • RS-4851
  • USB3
  • TF cardMax to 128 G
  • Lock control2 Relay output
  • General
  • Button3 touch buttons
  • InstallationTable mounting & wall mounting
  • Indicator3

  • Without package: 1.285 kg

    With package: 2.305 kg

  • Protective level/
  • Working temperature-10 °C to 50 °C( 14 °F to 122 °F)
  • Working humidity10% to 90%
  • Dimensions292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
  • Battery/
  • Power supply

    Standard PoE (LAN1)

    12 VDC

  • Application environmentIndoor
  • Power consumption≤ 12 W
PSMDSKM9503

Data sheet
