New

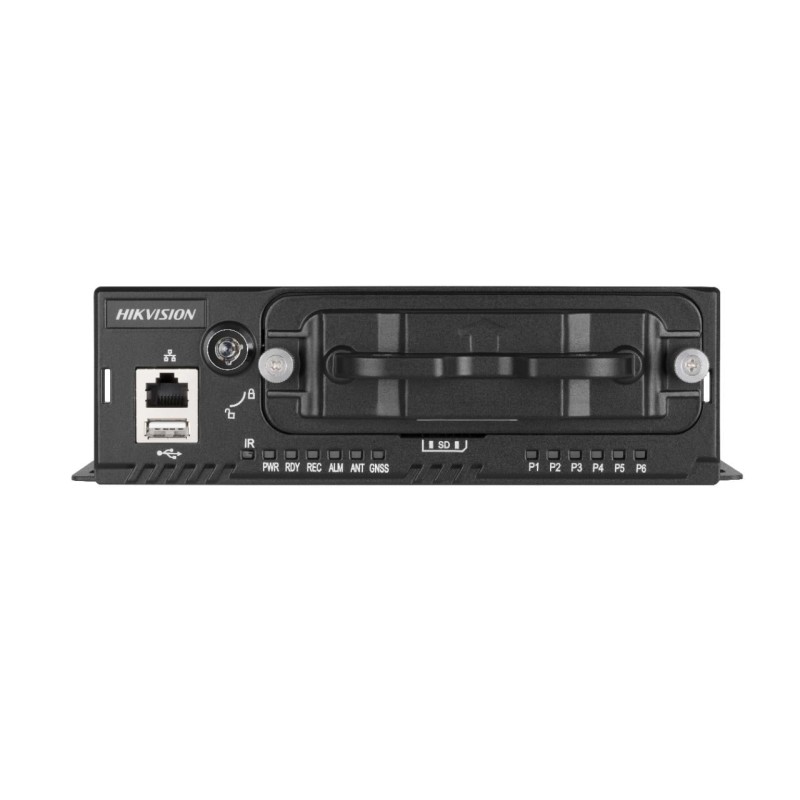

Hikvision mobile MVR DS-MP7608HN

SKU:DVRDSMP7608HN

Availability: On Stock

€1,171.14

Tax included Delivery within 1–3 business days

Video/Audio Input
IP Camera16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
Two-way Audio1, integrated in EXT.DEV interface

Video/Audio Output
Video Output1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
Audio Output1

Storage
HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,Dummy HDD with USB 3.0 interface
SD Card1 × SD card, up to 256 GB

External Interface
Network Interface2 × 10M/100M/1000M RJ45 Ethernet interface
USB InterfaceFront panel: 1 × USB 3.0,Rear panel: 1 × USB 2.0 of 5-pin aviation plug
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
Alarm Output2 relay signal outputs
Serial Port2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
CAN interface2
Sensor-in4 high/low level signal inputs

Wireless Network
3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna,WI model: 1 × 2.4 G Wi-Fi SMA antenna

General
Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F),Other devices: -10 °C to +60 °C (14 °F to 140°F)
Working Humidity10% to 95%
Power Supply9 to 32 VDC
ConsumptionStandby: ≤ 0.5 W,Full load: ≤ 99 W ,Note: Without peripheral and storage media ≤ 20 W
Operating MethodMouse, IR remote control, Web control, and touchscreen
Dimensions (W × D × H)202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
Weight (Without Storage Media)3.66 kg (8.07 lb)
