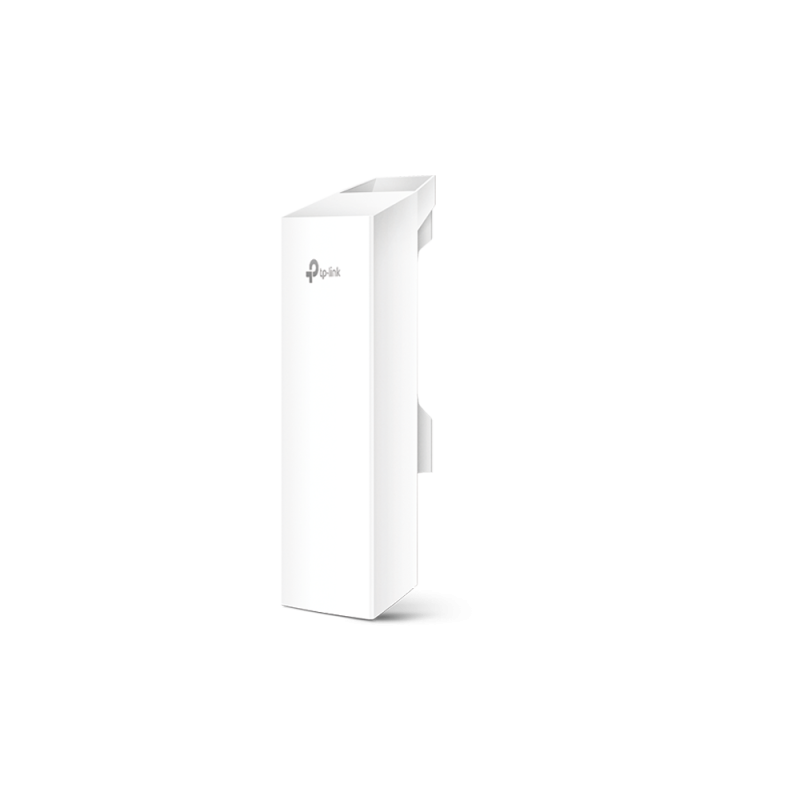

The TP‑LINK CPE210 is a 2.4 GHz outdoor wireless CPE unit featuring a 9 dBi dual‑polarized MIMO antenna. It supports up to 300 Mbps speed, Pharos MAXtream TDMA technology, and up to 60 m Passive PoE. Weatherproof with IPX5 rating and centralized management via Pharos Control.
The TP‑LINK CPE210 is a long-range outdoor CPE device designed for wireless bridge or access applications. With an integrated 9 dBi directional MIMO antenna, it ensures stable transmission over large distances.
| Parameter | Value |
|---|---|
| Model | CPE210 |
| Processor | Qualcomm Atheros 560 MHz (MIPS 74Kc) |
| Memory | 64 MB RAM, 8 MB Flash |
| Wireless standard | 802.11b/g/n, up to 300 Mbps |
| Frequency range | 2.4–2.483 GHz |
| Antenna | Integrated 9 dBi, 2×2 MIMO |
| PoE supply | 24 V Passive PoE (16–27 V), up to 60 m |
| Power consumption | Max. 5 W |
| Protection | IPX5, 15 kV ESD, 6 kV lightning |
| Operating temperature | −40 °C to +70 °C |
| Dimensions | 224 × 79 × 60 mm |
Data sheet
The TP‑LINK CPE210 is a 2.4 GHz outdoor wireless CPE unit featuring a 9 dBi dual‑polarized MIMO antenna. It supports up to 300 Mbps speed, Pharos MAXtream TDMA technology, and up to 60 m Passive PoE. Weatherproof with IPX5 rating and centralized management via Pharos Control.
