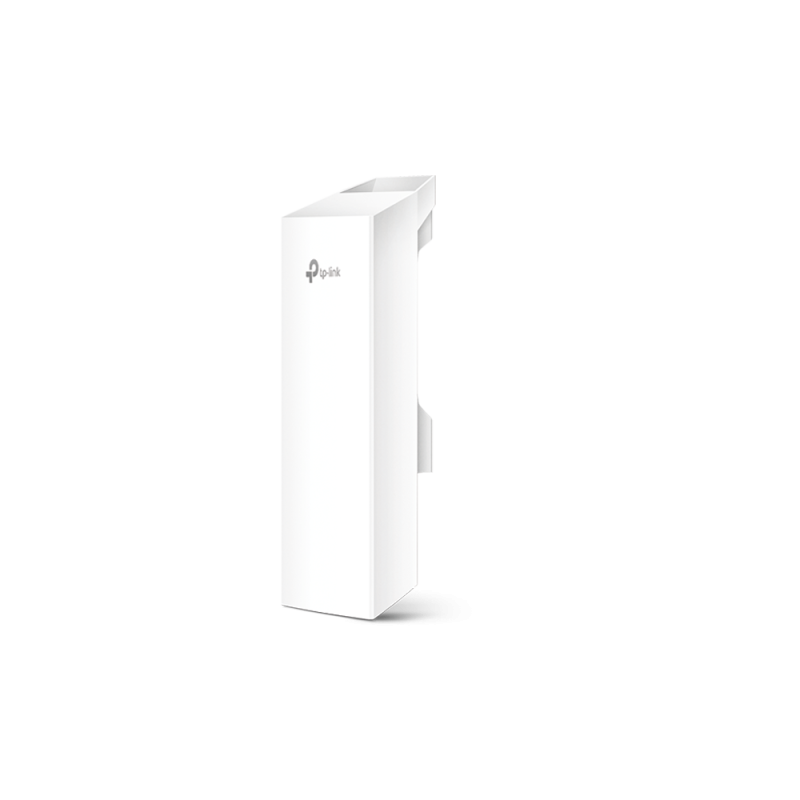

The TP-LINK CPE510 is a 5 GHz outdoor wireless unit with 13 dBi MIMO antenna designed for long-range Wi-Fi transmission. Supports up to 300 Mbps speed, Pharos MAXtream TDMA, and up to 60 m Passive PoE. Weatherproof with IPX5 rating and managed via Pharos Control.
The TP-LINK CPE510 is a 5 GHz outdoor wireless CPE designed for long-range transmission. It features a built-in 13 dBi dual-polarized MIMO directional antenna, Pharos MAXtream TDMA, and weatherproof enclosure with IPX5 protection, ensuring stable wireless connectivity in challenging environments.
| Parameter | Value |
|---|---|
| Model | CPE510 |
| Frequency | 5.15 – 5.85 GHz |
| Wireless protocol | IEEE 802.11a/n, MAXtream TDMA |
| Speed | Up to 300 Mbps (40 MHz) |
| Processor | Qualcomm Atheros 560 MHz (MIPS 74Kc) |
| Memory | 64 MB DDR2 RAM, 8 MB Flash |
| Antenna | 13 dBi directional, 2×2 MIMO, 45° / 30° |
| PoE | Passive, 16–27 VDC, up to 60 m |
| Power consumption | Max. 9.8 W |
| Dimensions | 224 × 79 × 60 mm |
| Protection | IPX5, 15 kV ESD, 6 kV lightning |
| Operating temperature | −40 °C ~ +70 °C |
Data sheet
The TP-LINK CPE510 is a 5 GHz outdoor wireless unit with 13 dBi MIMO antenna designed for long-range Wi-Fi transmission. Supports up to 300 Mbps speed, Pharos MAXtream TDMA, and up to 60 m Passive PoE. Weatherproof with IPX5 rating and managed via Pharos Control.
