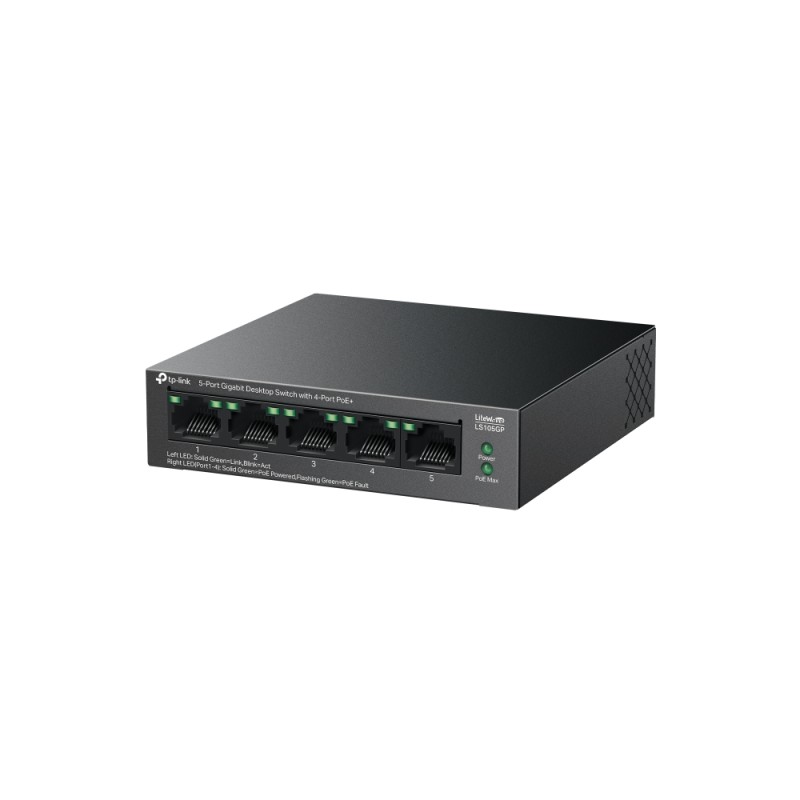

The TP‑LINK LS105GP is a compact 5‑port Gigabit desktop switch with 4 PoE+ ports, 65 W PoE budget, fanless, plug‑and‑play, with PoE Auto Recovery and Green Ethernet technology.
The TP‑LINK LS105GP is a compact 5‑port Gigabit desktop switch featuring 4 PoE+ ports, up to 65 W PoE budget, fanless design, and plug‑and‑play functionality. It comes with PoE Auto Recovery and Green Ethernet for energy efficiency.
Truly plug‑and‑play with no configuration needed. Can be placed on desktop or wall-mounted. Ideal for powering IP cameras, access points, and VoIP phones over a single cable.
| Parameter | Value |
|---|---|
| Ports | 5× 10/100/1000 Mbps RJ45 (Ports 1–4 PoE+) |
| PoE Budget | 65 W (up to 30 W per port) |
| Extend Mode | Up to 250 m PoE transmission (Ports 1–2) |
| PoE Auto Recovery | Automatic reboot of PoE‑powered devices |
| Power Supply | External adapter 53.5 V ⎓ 1.31 A |
| Dimensions | 99.8 × 98 × 25 mm |
| Power Consumption | 4 W (no PD); 74.5 W (with full PoE load) |
| Switching Capacity | 10 Gbps |
| MAC Table | 2K entries |
| Operating Temp. | 0 °C to 40 °C |
| Certifications | FCC, CE, RoHS |
Data sheet
The TP‑LINK LS105GP is a compact 5‑port Gigabit desktop switch with 4 PoE+ ports, 65 W PoE budget, fanless, plug‑and‑play, with PoE Auto Recovery and Green Ethernet technology.
