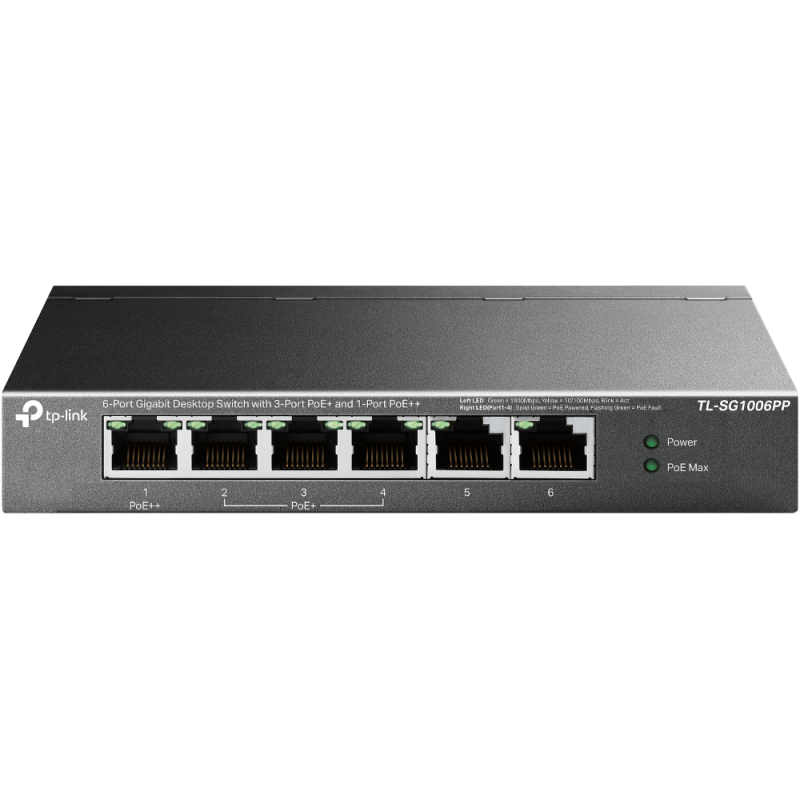

The TP‑LINK TL‑SG1006PP is a compact 6‑port Gigabit desktop switch featuring 3 PoE+ ports and 1 PoE++ port, with a 64 W PoE budget, extend mode up to 250 m, fanless design, plug‑and‑play, and PoE Auto Recovery.
The TP‑LINK TL‑SG1006PP is a compact 6‑port Gigabit desktop switch featuring one PoE++ port and three PoE+ ports, delivering up to 64 W of total PoE power. It supports extend mode up to 250 m, fanless design, plug‑and‑play setup, and PoE Auto Recovery for stable device operation.
Completely plug‑and‑play—no configuration required. Ideal for desktop or wall mounting. Perfect for powering IP cameras, wireless access points, IP phones with a single cable.
| Parameter | Value |
|---|---|
| Ports | 6× 10/100/1000 Mbps RJ45 (1× PoE++, 3× PoE+) |
| Total PoE Power | 64 W |
| Max PoE++ per port | 60 W |
| Max PoE+ per port | 30 W |
| Switching Capacity | 12 Gbps |
| MAC Address Table | 4 K entries |
| Dimensions | 158 × 101 × 25 mm |
| Power Consumption | ~4.75 W (no PD), ~71.46 W (full PoE load) |
| Power Supply | External adapter 53.5 V ⎓ 1.31 A |
| Operating Temp. | 0 °C–40 °C |
| Certifications | CE, RoHS |
Data sheet
The TP‑LINK TL‑SG1006PP is a compact 6‑port Gigabit desktop switch featuring 3 PoE+ ports and 1 PoE++ port, with a 64 W PoE budget, extend mode up to 250 m, fanless design, plug‑and‑play, and PoE Auto Recovery.
