Device name: ShellyBLU Button1
Device model: SBBT-002C

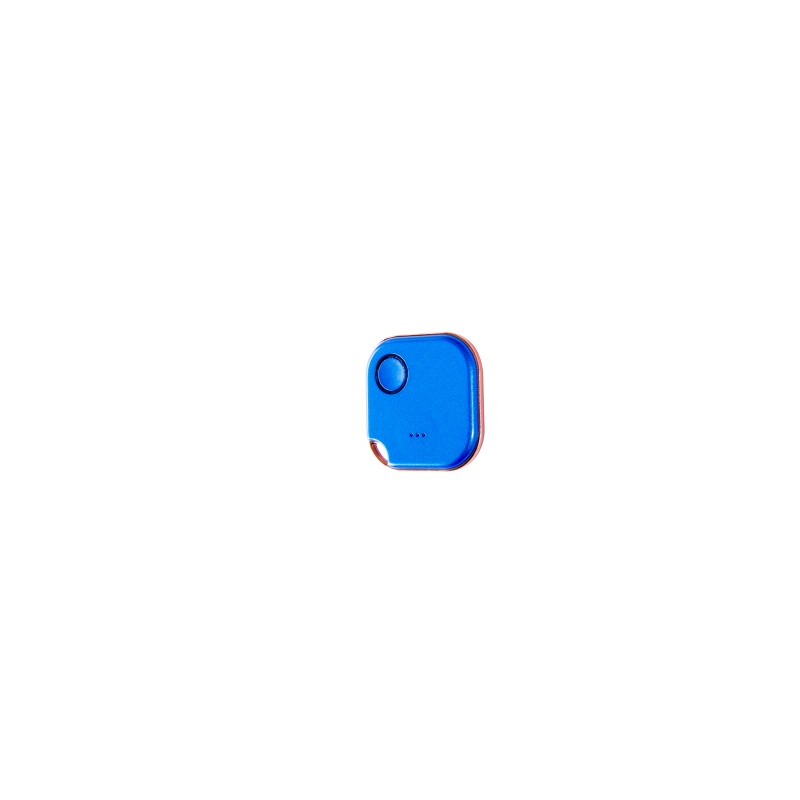

Shelly Blu Button 1 (the Device) is a Bluetooth button, which allows you easily activate and deactivate devices or scenes with just a click.
Long battery life
LED indication
Buzzer
Beacon mode
Encrypted mode
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Bluetooth
One push button
Press shortly once, twice, or three times, or press and hold for about 2 sec to emit a signal
Press and hold for 10 sec to pair ShellyBLU Button1 with another Bluetooth device.
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
Red LED indication
Buzzer
|
Type |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
36x36x6 mm ±0.5 mm / 1.44х1.44х0.25 in ±0.02 in |
|
Weight with the battery: |
9 g ±1 g / 0.30 ±0.05 oz |
|
Shell material: |
Plastic |
|
Color: |
White, black, red, blue |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Electrical |
|
|
Power supply: |
1x 3 V CR2032 battery (included) |
|
Battery life: |
Battery life: up to 2 years |
|
Radio |
|
|
RF band: |
2400 - 2483.5 MHz |
|
Max. RF power: |
<4 dBm |
|
Bluetooth Protocol: |
4.2 |
|
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
MCU |
|
|
CPU: |
EFR32BG22 |
|
Flash: |
32KB RAM |
|
Firmware capabilities |
|
|
Encryption: |
AES encryption (CCM mode) |
|
Beacon mode: |
Yes |
|
Multi-click support: |
Up to 4 possible actions |
