Shelly Pro Dimmer 0 1 10V PM

Device identification

• Device name: Shelly Pro Dimmer 0/1-10V PM

• Device model: SPCC-001PE10EU

• Device SSID: ShellyPro0110PM-XXXXXXXXXXXX

• BLE Model ID: 0x2011

Short description

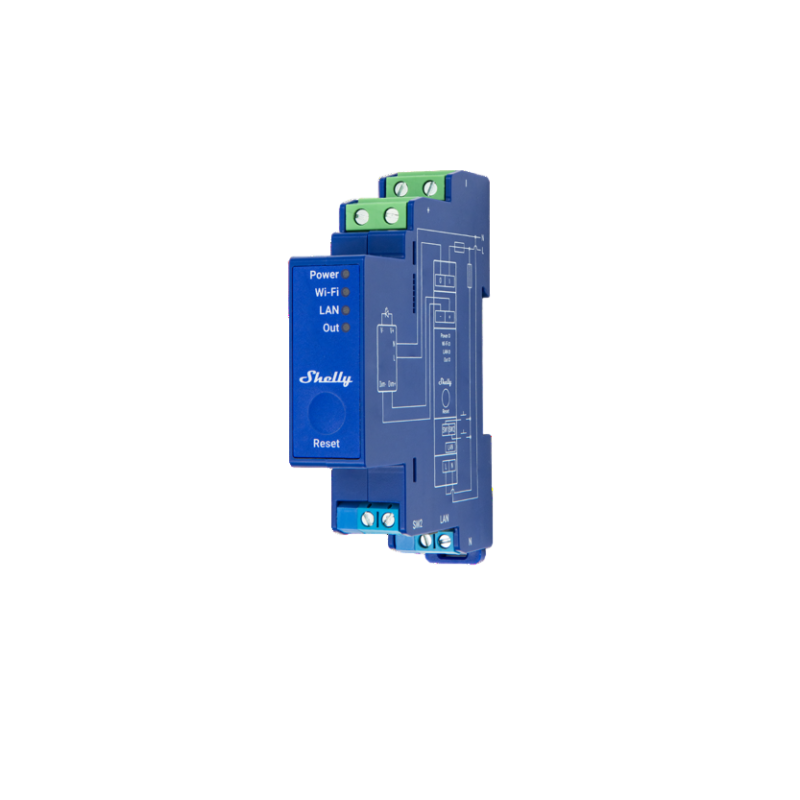

Shelly Pro Dimmer 0/1-10V PM (the Device) is a smart DIN-mountable dimming controller which allows to control remotely dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is a current sourcing controller and provides support for 0-10V and 1-10V types of drivers.

Main features

• DIN rail mountable

• Power measurement: Precise monitoring of energy consumption.

• Bluetooth connectivity: The Device complies with the Bluetooth standard and can connect with other Bluetooth devices to exchange data over short distances.

• BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.

• Wi-Fi: The Device can connect to a wireless network.

• Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.

• Ethernet connectivity

• Scripting: Allows creating automation scenarios through scripts.

• Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.

• Аdvanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.

• Auto on/off timers: Enables auto on/off timer setting.

• Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.

• Webhooks: Supports automation through lightweight, event-driven communication with other devices.

• Compatibility: Highly compatible with third-party home automation systems, including KNX.

• No need for hub: Ready for use locally or remotely via Shelly Smart Control or third-party systems.

• Activity log: Stores detailed history of events.

• KVS (Key-value storage): KVS service provides a basic persistent storage of key-value pairs.

• KNX: Supports KNXnet/IP communication

• Safety: Оver current/voltage/power protections

• Virtual and BTHome components: A special set of components that do not exist in the device initially and are created dynamically by the user.

• Diverse driver integration: Supports 0-10 V and 1-10 V types of drivers (lights, motors, valves, etc.).

• Night Mode: Enables to set a specific brightness of input lights during nighttime.

• Switch/Button input mode: Allows flexible input control through switches and/or button:

  • One button dimming control

  • Dual button dimming control

• Transition duration: Controls the time it takes to transition from the current brightness level to the desired brightness level on request.

• Minimum brightness on toggle On: Sets brightness to 3% (default value) when toggled on, if the current brightness is below 'Min brightness on toggle.' This does not apply if a custom transition is defined in Schedules or Actions.

• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.

• Button fade rate: Controls how quickly the output brightness changes while holding the button(s). The default value is 3x.

• Button presets: State to be applied on double-push (double-click) event. The default value is 100%

Use cases

• Control brightness of dimmable lights within the 0-10 V range to set the perfect brightness.

• Create smart schedules to have lights automatically adjust their brightness throughout the day.

• Retrofit your existing lighting system with the Dimmer 0/1-10V PM Gen3 and continue using your current switches.

• Sync your lights with sunrise and sunset times easily using smart schedules.

• Activate a night mode for reduced brightness during nighttime hours.

• Integrate the Dimmer 0/1-10V PM Gen3 with third-party systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.

• Utilize the device to dim lights up or down with a single or double button press.

• Monitor and measure power usage of connected lights for energy management.

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

Simplified internal schematics

Device electrical interfaces

Inputs

• 2 switch/button inputs on screw terminals: S1 and S2

• 2 power supply inputs on screw terminals: 1 N and 1 L

• 1 relay input with power measurement on screw terminal

Outputs

• 2 0-10V outputs on screw terminals: + and -

• 1 relay output with power measurement on screw terminal

Connectivity

• Wi-Fi

• Ethernet

• Bluetooth

Safety function

• Overheating protection

• Overvoltage protection

• Overcurrent protection

• Overpower protection

Supported load types

• 0-10V signal control for multiple types of drivers (lights, motors, valves, etc.)

• 1-10V signal control

• Resistive (incandescent bulbs, heating appliances)

• Capacitive (capacitor banks, electronic equipment, motor starting capacitors)

• Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

User interface

Inputs

• One (Reset) button

  • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

  • Press and hold for 10 seconds to factory reset the Device.

Outputs

• LED indication

  • Power (red): Red light indicator will be on if power supply is connected.

  • Wi-Fi (varies):

    • Blue light indicator will be on if in AP mode.

    • Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.

    • Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.

    • Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.

    • The light indicator will be flashing Red/Blue if OTA update is in progress.

  • LAN (green): Green light indicator will be on if LAN is connected.

  • Out (red): Red light indicator will be on if the Output is on.

Specifications

Basic wiring diagrams

Legend
