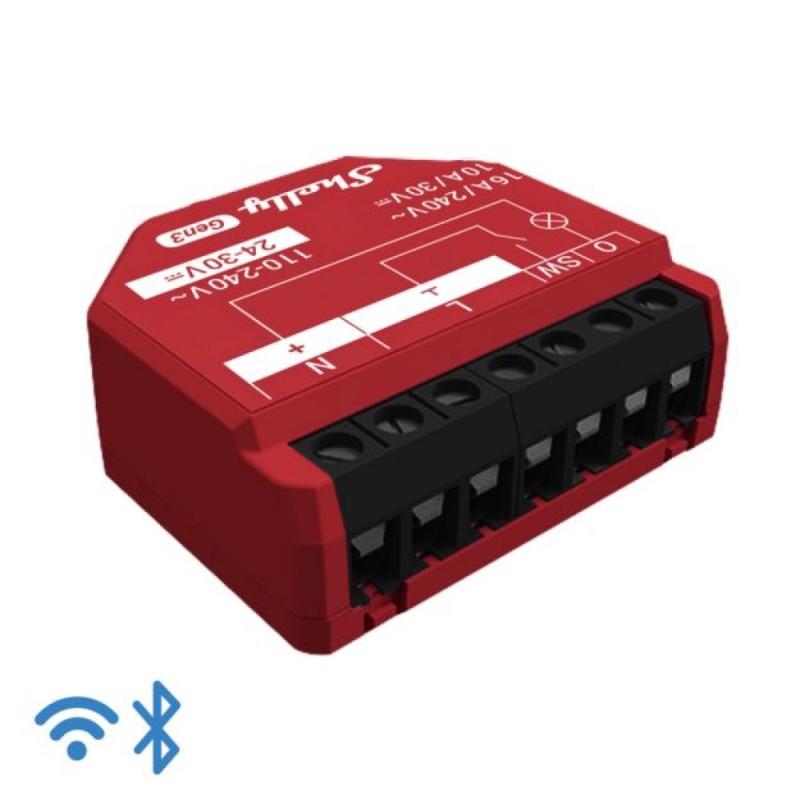

Shelly 1PM Gen3

Device Identification

• Device Name: Shelly 1PM Gen3

• Device Model: S3SW-001P16EU

• Device SSID: Shelly1PMG3-XXXXXXXXXXXXXXXX

• BLE Model ID: 0x1019

Trump's aprašymas

"Shelly 1PM Gen3" is a small form factor išdummy switch with power metering that allows you to remotely control your electrical appliances via your mobile phone, PC, personal computer or home automation system. It can operate independently on a local "Wi-Fi" network or be controlled via cloud-based home automation services. It also has an improved processor and increased memory compared to its predecessor.

The "Shelly 1PM Gen3" can be accessed, controlled and monitored remotely from any location where the user has an internet connection, as long as the device is connected to a "Wi-Fi" router and the internet.

It can be installed in standard electrical wall boxes, behind power outlets and light switches, or in other locations where space is at a premium.

"Shelly 1PM Gen3" has a built-in web interface that allows you to monitor and control the unit, as well as adjust its settings.

Basic Features

• Wi-Fi connectivity: The device can connect to your home Wi-Fi network, so you can remotely monitor humidity and temperature data using the i&scaron>my phone app or other compatible devices.

• Integration with išman home platforms: You can integrate the Shelly i4 Gen3 with popular išman home platforms including "Google", "Alexa" and "Samsung SmartThings". This enables voice control and automation capabilities through these platforms.



• I&scaron>manual switch with power metering: acts as an i&scaron switch with the additional option of power metering, so you can monitor the power consumption of connected appliances.

• Compact design:Designed as a small-format switch, it can be installed in standard electrical wall boxes, behind sockets, light switches or in other confined spaces.

• Remote control: Provides remote control of electrical appliances via mobile phone, PC, PC or home automation system.

• On-site and cloud control:Can operate independently on a local "Wi-Fi" network, and can also be controlled via cloud home automation services.

• Enhanced processor and memory: Enhanced processor and increased memory for greater performance.

• ³

  "

  ³



  ³

• Solid Access: Provides remote access, control and monitoring from any location with an Internet connection, as long as the device is connected to a Wi-Fi router and the Internet.

• Embedded web interface: Includes an embedded web interface for monitoring, management and setting adjustments.

• Wireless: The device supports "Wi-Fi" (802.11 b/g/n) and "Bluetooth 4.2" protocols, with specified indoor and outdoor range capabilities.

• BLE Gateway:Bridge between your "Shelly BLU" devices and the wider "Shelly" ecosystem. It receives "Bluetooth" signals and sends them to the cloud or locally to another non "Bluetooth" device.

• "Wi-Fi" range extender for IoT devices:"Wi-Fi" range extender is used to extend the coverage of a "Wi-Fi" network by receiving the current "Wi-Fi" signal, amplifying the signal's signal strength, and then transmitting the amplified signal to a larger area.

• Source:https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/

• High integration range: The device can be integrated with third-party home systems, documented HTTP APIs, MQTT(s), webhooks over HTTP and HTTPS, UDP

• Events:  It is possible to schedule complex operations to be executed within a predefined time window. Users can specify time windows by date, time of day, days of the week, hours, minutes and seconds

  .

• Default Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/

Uses

• Device control: Use it to remotely control and automate the operation of various electrical devices such as šoutlets, fans or other devices.

• Electricity monitoring: Monitor the power consumption of connected appliances in real time. This is useful for understanding energy consumption patterns and promoting energy efficiency.

• ³

  "

  ³

• Home Automation: Integrate "Shelly 1PM Gen3" into your home automation system to create custom scenes and schedules for your devices.

• Energy Efficiency:

  Use the power metering feature to identify energy-intensive appliances and make informed decisions that improve the overall energy efficiency of your home.

• Surveillance: Monitor your appliances even when you're not home. The remote access feature allows you to monitor and control connected devices from anywhere with an internet connection.

Basic applications

• Residential facilities

• MDUs (Multiple Dwelling Units - apartments, condominiums, townhouses, etc.)

• Light Commercial (small office buildings, small retail/restaurants/ petrol stations etc.)

• Government and municipal institutions

• University/college

Inclusions

Amazon Alexa supported capabilities

Yes

"Google Smart Home" supported features

Yes

Samsung SmartThings supported features

Yes

Simplified internal diagram

Device electrical interfaces

Inputs

• 1 switch/button input on screw terminal: SW

• 5 power supply inputs on screw terminals: 2 N (+) and 3 L (Ʇ)

I&scaron inputs

• 1 relay Išlead with power measurement at screw terminal: O

Additional interface

• Shely branded serial interface

⚠ CAUTION! High voltage on the plug-in interface when the device is switched on!

Network and connector ratings

Interconnection nominal parameters
Interconnect nominal parameters

Connectivity

• Wi-Fi

• Ethernet

• Bluetooth

Security function

• Overheating protection

• Protection against overšvoltage

• Voltage protection

• Voltage protection

Supported load types

• Resistive (incandescent light bulbs, šilding appliances)

• Capacitive (capacitor banks, electronic equipment, motor starting capacitors)

• Inductive with RC snubber (LED drivers, transformers, fans, air conditioners, washing machines, dryers)

User Interface

Input

• One (control) button

  • Press and hold for 5 seconds to activate the device's access point and Bluetooth connection.

  • Press and hold for 10 seconds to reset the device to factory settings.

Išvestys

• LED (monochrome) indication

  • AP (access pointšwhat) enabled and "Wi-Fi" išconnected:
    1 second On / 1 second I&scaron&connected

  • "Wi-Fi" enabled but not connected to a "Wi-Fi" network:
    1 second ON / 3 seconds Išconnected

  • Connected to "Wi-Fi" network:
    Permanently On

  • "Cloud" enabled but not connected:
    1 second ON /5 seconds IŠCONNECTED

  • Connected to "Shelly Cloud":
    Permanently CONNECTED

  • OTA (Over the Air Update):
    ½ second ON / ½ second IšON

  • Button pressed and held for 5 seconds:
    ½ second ON / ½ second IšCONNECTED

  • Button presses and holds for 10 seconds:
    ¼ second ON /¼ second IšCONNECTED

The list starts from the initial state of the device and the lowest priority. Each successive state overrides the previous state.

Specifications

Basic wiring diagrams

Legend
