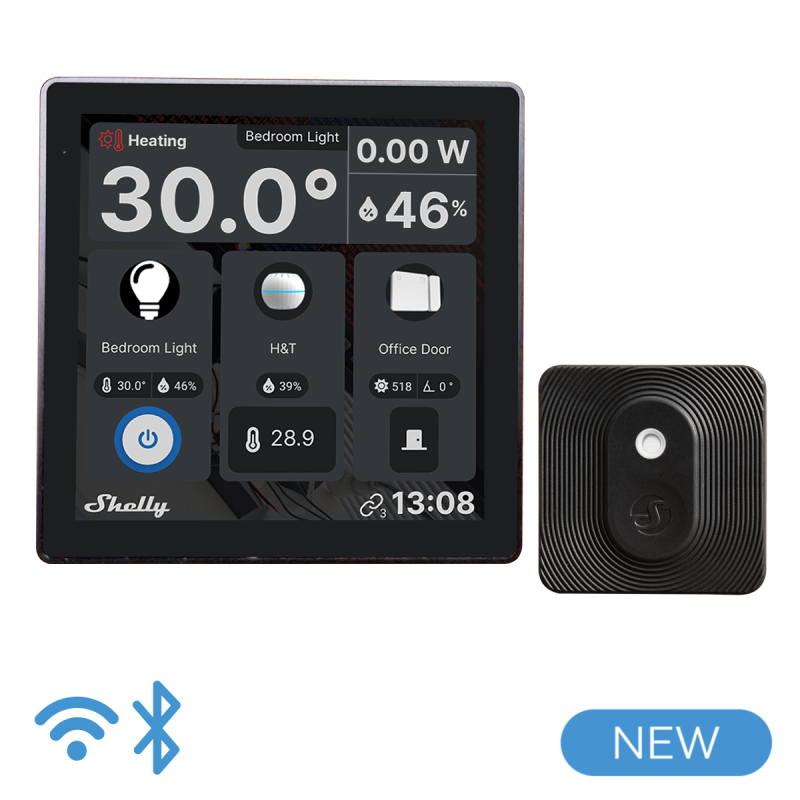

Shelly Wall Display+BLU H&T
Complete Smart Control and Environmental Monitoring bundle
Control all your devices from one centralized place with Shelly Wall Display, now combined with Shelly BLU H&T for precise climate control. Shelly Wall Display is an intuitive 4” wall display that gives you easy, centralized control and monitoring of all your Shelly devices. With a minimalistic look and customizable home screen, Shelly Wall Display will perfectly fit into your interior and adjust to your needs. Replace your ordinary light switch in 10 minutes and control & monitor all your Shelly devices with just a tap.
Specifications
| Physical | |
|---|---|
| Size (HxWxD): | 85x85x30mm / 3.35x3.35x1.18 in |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Color: | Black / White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 230 VAC, 50/60Hz |
| External protection: | 5 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.0 W |
| Output circuits ratings | |
| Max switching current AC: | 5A |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
