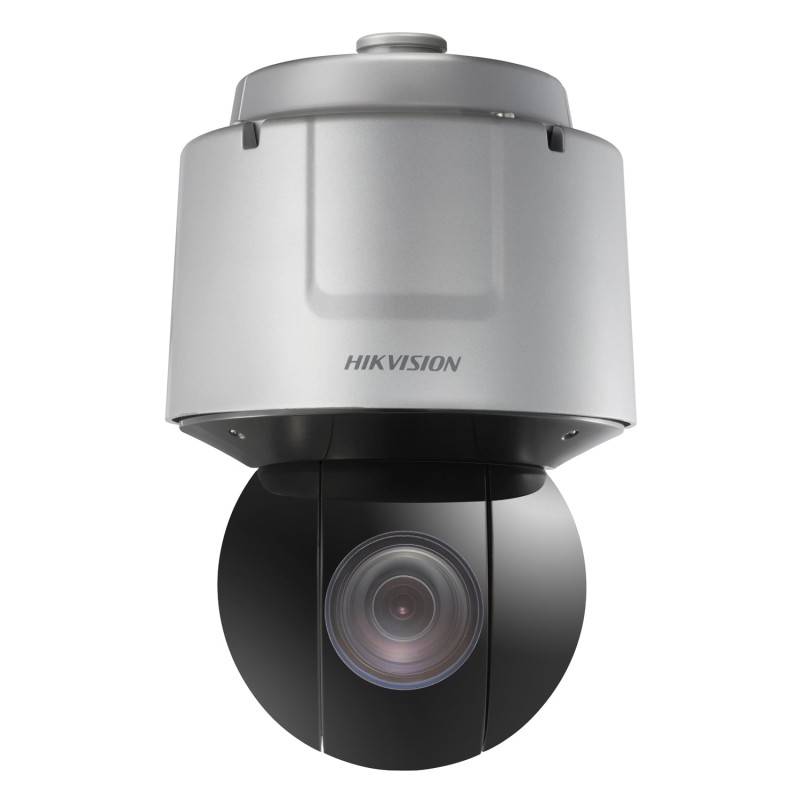

IP speed dome camera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)

SKU:KIPDS2DF6A225XAEL

Availability: On Stock

€1,438.63

Tax included Delivery within 1–3 business days

Camera
Image Sensor1/1.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR cut filter
Zoom25x optical, 16x digital
Slow ShutterYes
DORI
Detect (25px/m): 2034.5 m
Observe (63px/m): 807.3 m
Recognize (125px/m): 406.9 m
Identify (250px/m): 203.4 m

Lens
Focal Length5.9 mm to 147.5 mm
FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
FocusSemi-auto, manual, auto, rapid focus
ApertureMax. F1.5
Zoom SpeedApprox. 4.8 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-20° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt SpeedTilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off MemoryYes

Video
Main Stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 TypeBaseline profile, main profile, high profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
Smooth StreamingYes
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageNAS (NFS, SMB/ CIFS), ANR
ClientiVMS-4200, Hik-Connect, HikCentral
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Day/Night SwitchDay, night, auto, scheduled-switch
Wide Dynamic Range (WDR)140 dB WDR
SNR≥ 52 dB
DefogOptical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes

Interface
Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm7 alarm inputs, 2 alarm outputs
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Basic EventMotion detection, video tampering alarm, alarm input and output, exception
Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart TrackingManual tracking, auto-tracking

Deep Learning Function
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)

General
Power24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Dimension⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")
WeightApprox. 6 kg (13.23 lb.)
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
General FunctionMirror, password protection, watermark, IP address filter
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionLightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
