- General
- Image Sensor1/2.4" Progressive Scan CMOS
- Max. Resolution3200 × 1800
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON); B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
- Lens TypeFixed focal lens, 2.8 mm and 4 mm optional
- Focal Length & FOV2.8 mm: horizontal 114.8°, vertical 60°, diagonal 143.5°; 4 mm: horizontal 94°, vertical 50.2°, diagonal 112°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- Depth of Field2.8 mm: 1.7 m to ∞; 4 mm: 2.2 m to ∞
- DORI2.8 mm: D 64 m, O 25 m, R 12 m, I 6 m; 4 mm: D 77 m, O 30 m, R 15 m, I 7 m
- Supplement Light TypeIR
- Supplement Light Range2I: up to 60 m; 4I: up to 80 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Main Stream50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
- Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline, Main, High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR, VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
- User/HostUp to 32 users; administrator, operator, user
- SecurityPassword protection, complex password, HTTPS encryption, 802.1X authentication, watermark, IP filter, digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, MAC authentication
- Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserIE 10/11 (plug-in required); plug-in free: Chrome 57+, Firefox 52+, Edge 89+; local service: Chrome 57+, Firefox 52+, Edge 89+
- Image Parameters SwitchYes
- Image SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Privacy Mask4 programmable polygon masks
- Ethernet Interface1 RJ45 10/100 Mbps self-adaptive port
- On-Board StoragemicroSD/microSDHC/microSDXC up to 512 GB
- Reset KeyYes
- Basic EventMotion detection (human/vehicle), video tampering, exception
- Smart EventScene change detection
- Deep Learning FunctionFace capture
- Perimeter ProtectionLine crossing, intrusion, region entrance/exiting (human/vehicle)
- LinkageFTP/NAS/memory card upload, notify center, trigger recording/capture, email
- Power2I: 12 VDC ±25%, 0.7 A, max. 8.4 W; PoE 802.3af Class 3, max. 10 W; 4I: 12 VDC ±25%, 0.83 A, max. 10 W; PoE 802.3af Class 3, max. 12.5 W
- MaterialFront cover: metal; body: metal; bracket: metal
- Dimension286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
- Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- WeightApprox. 1120 g (2.4 lb.)
- With Package WeightApprox. 1804 g (3.6 lb.)
- Storage Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C, humidity

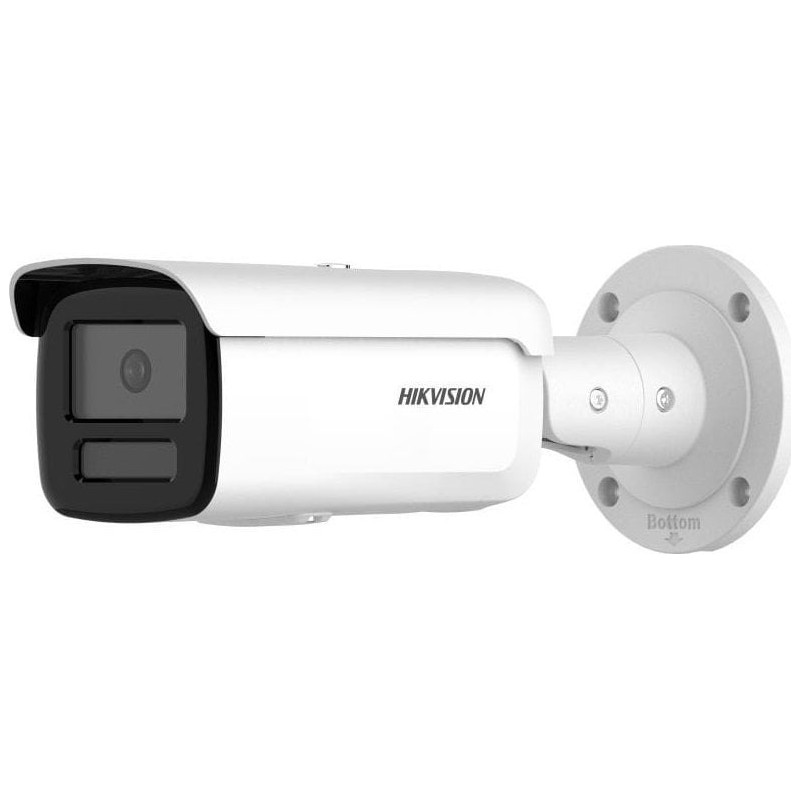

KIPDS2CD2T66G2H4IF4
