New Out-of-Stock

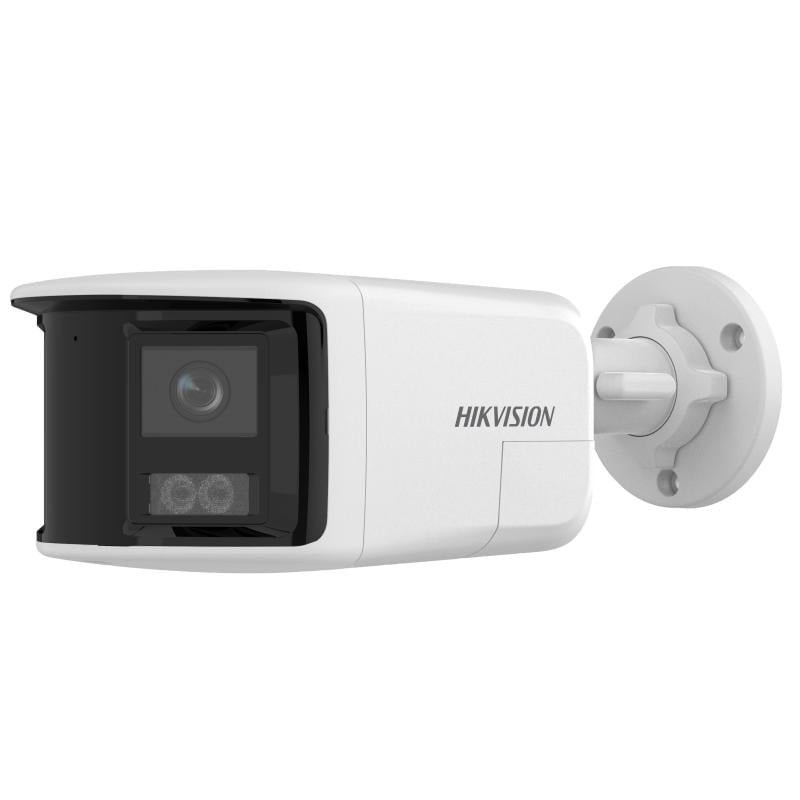

Hikvision bullet DS-2CD1T63G2P-LIUF/SL F2.8 (white, 6 MP, 30 m LED)

SKU:KIP2CD1T63G2PLIUFSL

Availability: Out-of-Stock

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€197.78

Tax included

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
SafetyCB: IEC 62368-1: 2014+A11, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Audio
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Sampling Rate8 kHz/16 kHz
Audio TypeMono sound
Environment Noise FilteringYes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
LinkageUpload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing

General
Dimension103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
Flashing Light/SRB model: Red and Blue Light /SL model: White Light
General FunctionHeartbeat,anti-banding,password protection,password reset via email
LanguageEnglish, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
MaterialFront cover: Metal, body: Plastic, bracket: Metal
Package Dimension260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5")
Power12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
WeightApprox. 560 g (1.2 lb.)
With Package WeightApprox. 835 g (1.8 lb.)

Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Interface
Built-in MicrophoneYes,1 built-in microphone
Built-in SpeakerYes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes

Network
APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
ClientiVMS-4200,Hik-Connect
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
Web BrowserPlug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+

Video
Bit Rate ControlCBR,VBR
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Main Stream50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Sub-Stream50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
Video Bit Rate32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
