Nauja

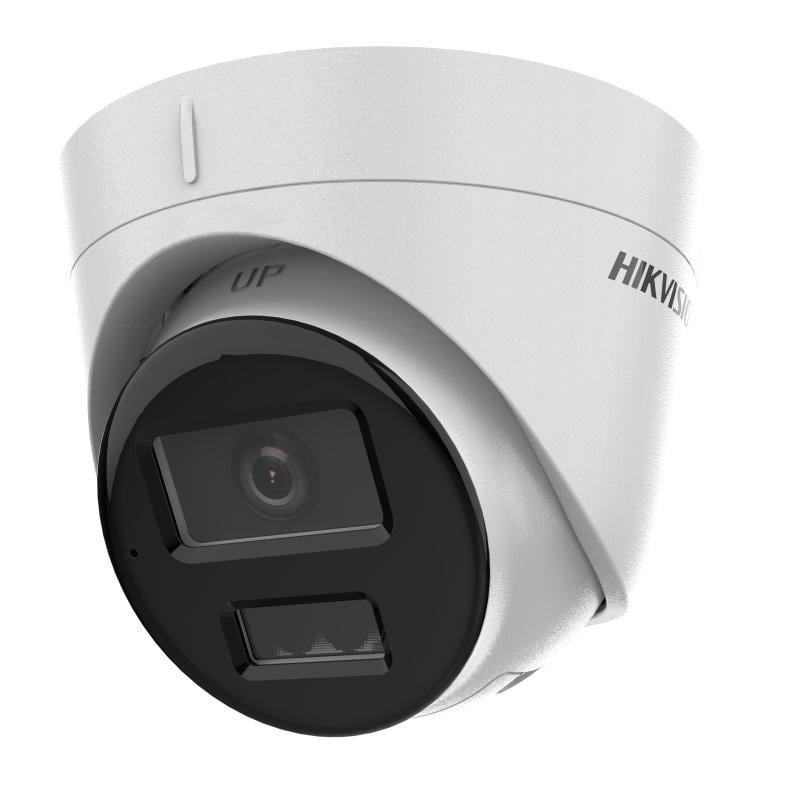

Hikvision dome DS-2CD1323G2-LIU F2.8 (balta, 2 MP, 30 m. IR + LED)

Prekės kodas:KIPDS2CD1323G2LIUF28

Prieinamumas: Yra sandėlyje

71,45 €

Su PVM Pristatysime per 1-3 d.d.

Patvirtinimai
EMCFCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Garsas
Garso bitų dažnis64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

DORI
DORI2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Bendra informacija
MatmenysØ110 mm × 89.2 mm (Ø4.3" × 3.5")
Pagrindinės funkcijosHeartbeat,anti-banding,mirror,password protection,password reset via email
KalbaEnglish, Ukrainian
MedžiagaMetal & Plastic
Pakuotės dydis150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Galia 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 6.5 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 340 g (0.7 lb.)
Svoris su įpakavimuApprox. 560 g (1.2 lb.)

Nuotrauka
Dienos/nakties perjungiklisDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)Digital WDR

Sąsaja
Integruotas mikrofonasYes
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas-F: Yes

Objektyvas
DiafragmaF1.6
Focal Length & FOV2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Rainelės tipasFixed
Objektyvo tvirtinimasM12
Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional

Tinklas
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
KlientasiVMS-4200,Hik-Connect
ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
SaugumasPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+

Vaizdas
Bitų dažnio valdymasCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream
Antrinis srautas50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
Vaizdo bitų dažnis32 Kbps to 8 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
