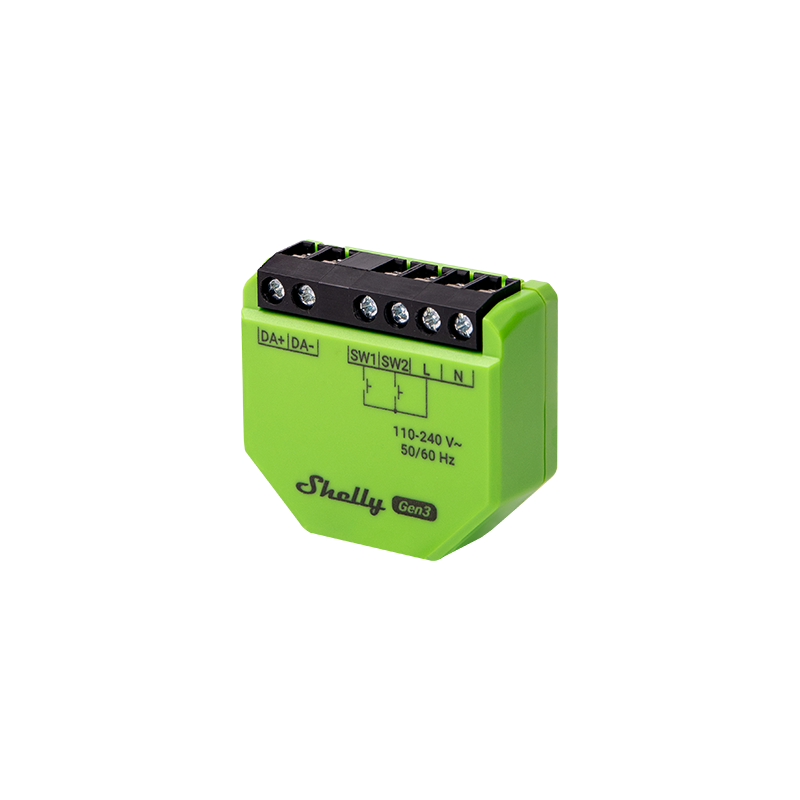

Shelly DALI Dimmer Gen3
Shelly DALI Dimmer Gen3 is an advanced brightness control device for high-end DALI luminaries. It acts as a bridge between a DALI network of lights and your Shelly ecosystem, making it an easy solution for managing your sophisticated lighting system.
Functionalities
Control of DALI Part 207 gear
Shelly DALI Dimmer Gen3 is designed to provide brightness control of DALI lights. Whether for your home or your office space, Shelly smart solutions
allow for cost effective and highly flexible deployments of sensors and actuators.
Integrated bus power supply
The integrated bus power supply allows control of up to 5 downstream lights without the use of additional DALI power supply module. When additional sensor or wall switches need to be deployed the Shelly product line offers wired and wireless sensor for easy integration or retrofit solutions.
KNX Support
Shelly DALI Dimmer Gen3 integrates into KNX systems, offering a powerful and cost-effective solution for expanding your existing setup. By enabling wireless extension, it eliminates the need for wiring, reducing both installation time and costs. Whether you're upgrading a current system or adding new
capabilities, it provides a flexible and efficient way to enhance your KNX network.
Remote control
Enjoy the flexibility of remote control and monitoring of your smart home,
office space or store. Your cloud connected Shelly devices can be integrated into the Shelly Smart Home application. Control individual rooms, create smart scenes, share your devices with your family members.
Specifications
| Size (HxWxD): | 42x37x17 mm / 1.65x1.46x0.66 in |
|---|---|
| Weight: | 18 g / 0.63 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm²/ 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | In-wall, suspended ceilings |
| Shell material: | Plastic |
| Shell color: | Green |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Power supply: | 110 - 240 V~ ±10% 50/60Hz |
| Power consumption: | < 2 W |
| Neutral not needed: | No |
| Bus power supply: | Guaranteed 10mA (up to 5 DALI control gear units), Short circuit current < 35 mA |
| Bus voltage: | 16V nominal |
| Internal-temperature sensor: | Yes |
| Wi-Fi Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2495 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions) |
| Bluetooth Protocol: | 4.2 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Encryption: | Yes, TLS 1.2 |
