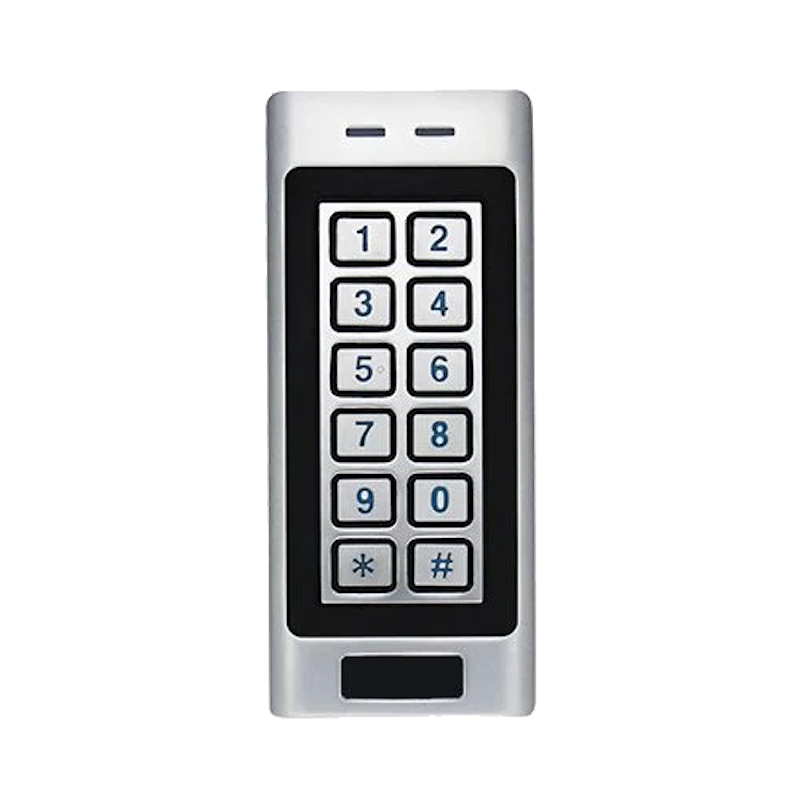

Standalone keypad with RFID card reader (EM 125KHz), 1 relay, 1000 user memory

SKU:1422K4

Availability: Item in supplier warehouses

Compact standalone keypad with built-in EM 125KHz RFID card reader. Supports up to 1000 users and includes 1 relay for door control. A reliable and simple access control solution.

€40.93

Tax included Delivery within 1–4 business days

Description
Product Details

This standalone keypad with a built-in RFID card reader (EM 125KHz) is an excellent solution for independent, simple, and reliable access control. The device operates without the need for an additional controller, making it perfect for small facilities, warehouses, residential entrances, or office doors.

Key Features:

RFID Reader: supports EM 125KHz cards and key fobs.
User Capacity: up to 1000 unique users (card or PIN).
Relay Output: 1 relay for electric lock or gate control.
Operating Modes: PIN code, RFID card, or a combination of both.
Housing: weather-resistant, suitable for indoor or outdoor installation (depending on IP rating).
Alarm Features: wrong code/card attempts can trigger an alarm.
Simple Programming: keypad is programmed locally using command codes.

This device is highly regarded for its reliability, fast response, and easy installation. It suits both professional setups and personal use cases where efficient access control is needed without a complex infrastructure.

Parameter	Value
User Capacity	1000
Card Type	EM 125kHz
PIN Code	4–6 digits
Power Supply	12–24V DC
Standby Current	≤50mA
Operating Current	≤80mA
Wiring Connections	Relay output, exit button
Relay	1 (NO, NC, COM)
Adjustable Relay Time	1–99 seconds (5 sec default)
Lock Output Load	Max 3A
IP Rating	Meets IP66
Operating Temperature	-40°C ~ +60°C (-40°F ~ 140°F)
Relative Humidity	20% ~ 98% RH
Dimensions	13.0 x 5.6 x 2.3 cm

Reference 1422K4
