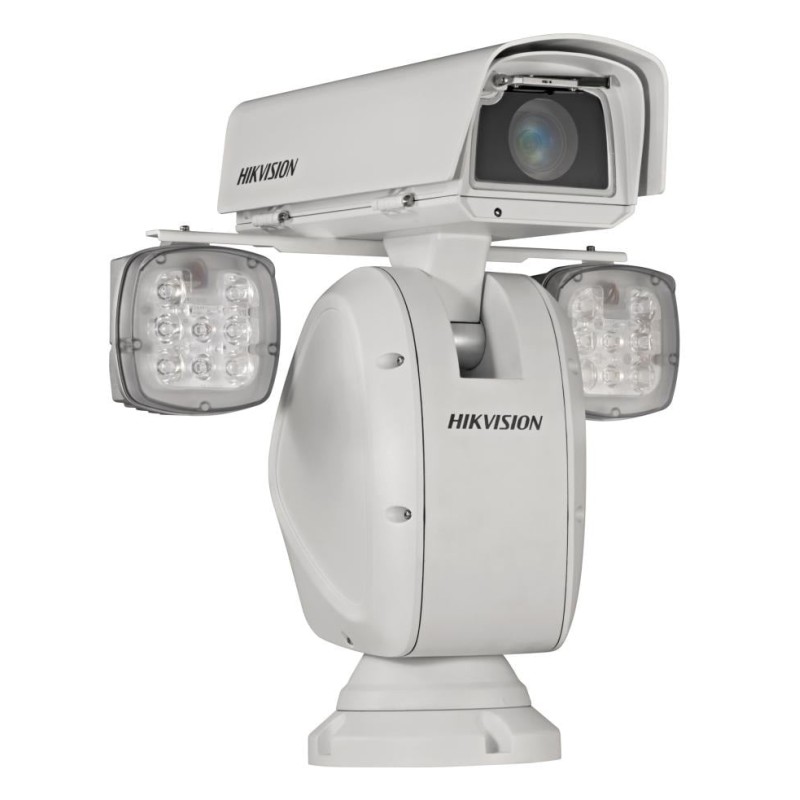

Hikvision speed dome camera DS-2DY9240IX-A(T5)

SKU:KIPSPDS2DY9250IXAT5

Availability: On Stock

€3,940.25

Tax included Delivery within 1–3 business days

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illumination0 Lux with IR||B/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON)
Shutter Speed1/1s ~ 1/30,000s
Day & NightICR
Zoom40 × optical, 16 × digital

Lens
Focal Length6.0 mm to 240 mm, 40 × optical
FOV
Horizontal field of view: 59.0 to 1.8° (wide-tele)
Vertical field of view: 33.7° to 1.1° (wide-tele),
Diagonal field of view: 63.4° to 2.1° (wide-tele)
Focussemi-auto||manual||auto
ApertureF1.2
Zoom Speedapprox.5.6s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)+40° to -90°
Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Park Actionpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memoryyes

Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265, H.264, MJPEG
H.264 Typebaseline profile, main profile, high profile
H.265 Typemain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)8 fixed regions for each stream

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Wide Dynamic Range (WDR)140 dB WDR
Image StabilizationEIS; Built-in gyroscope to improve EIS performance.
Image EnhancementBLC, HLC, 3D DNR
Privacy Maskup to 24 masks, polygon region , mosaic mask , mask color configurable
Regional Focusyes
Regional Exposureyes

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm7 alarm inputs, 2 alarm outputs
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Basic Eventmotion detection, video tampering alarm, alarm input, alarm output, exception
Smart Eventunattended baggage detection, object removal detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart Trackingmanual tracking, event tracking

Deep Learning Function
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General
Power24 VAC ± 25%, max. 100 W
Dimension460 mm × 390 mm × 491 mm (18.11" × 15.35" × 19.33")
WeightApprox. 15 kg (33.07 lb)
MaterialAluminum alloy ADC12
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
General Functionmirror, password protection, watermark, IP address filter
Vandal-proof Alarmyes
WiperYes. Rain-sensing auto control
Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
