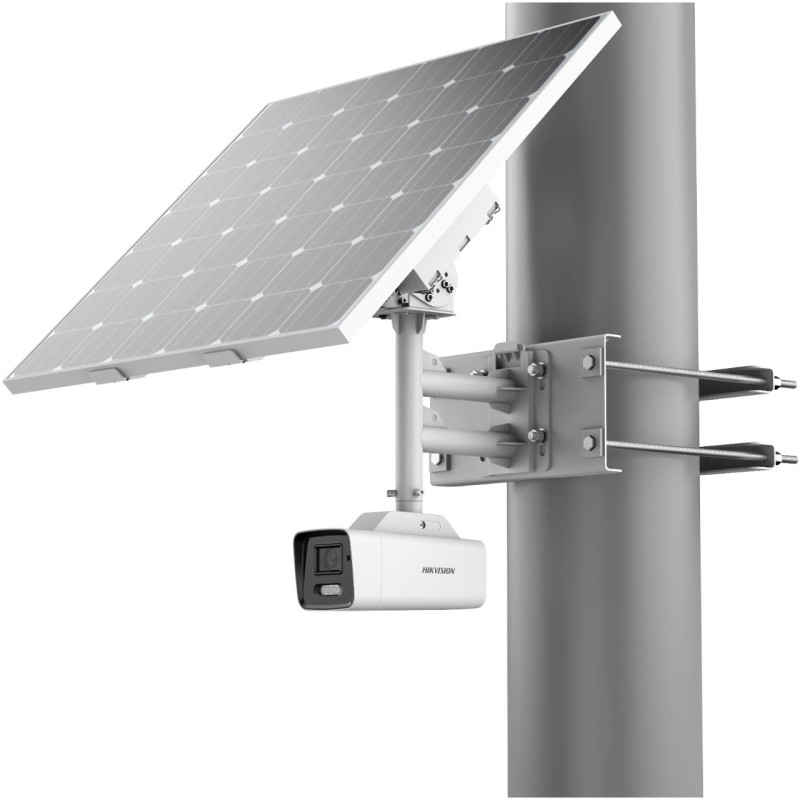

Hikvision bullet DS-2XS6A47G1-LS/C36S80 (solar panel, 4G)

SKU:KIP2XS6A47G1LSC36S80

Availability: Out-of-Stock

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€2,181.61

Tax included

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time1 s to 1/100,000 s

Lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°
4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Iris TypeFixed
ApertureF1.0
Lens MountM16

DORI
DORI
2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m

Video
Main Stream
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
Video Compression
Main stream: H.264/H.265
Sub-stream: H.264/H.265/MJPEG
Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for main stream

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientHik-Connect (proactive mode also supports), Hik-central Professional
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication
SIM Card TypeMicroSIM
Frequency
DS-2XS6A47G1-LS/C32S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800MHz
DS-2XS6A47G1-LS/C32S80 (US):
LTE-FDD: Band2/4/5/12/13/66/71
WCDMA: Band2/4/5
DS-2XS6A47G1-LS/C32S80 (LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900MHz
DS-2XS6A47G1-LS/C32S80 (JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/6/8/19
Standard
DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA
DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

Wide Dynamic Range (WDR)130 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR, Defog
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR≥ 52 dB
Privacy Mask4 programmable polygon privacy masks

Interface
RS-4851 RS-485 (half duplex, connect to external battery)
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB;
Built-in 64 GB eMMC storage
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Power Output12 VDC, max. 1000 mA

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event
Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
*Smart events are only supported under performance mode.
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General
Power
12 VDC ± 20%, 4-pin M8 waterproof connector
1. Standby power consumption: 53 mW
2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
3. The max. power consumption: 3.2 W
MaterialFront cover: metal, body: metal, bracket: metal
Dimension882.6 mm × 706.3 mm × 760 mm (34.8" × 27.8" × 29.9") (Max. size of the camera after it is completely assembled)
Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
WeightApprox. 30.2 kg (66.5 lb.)
With Package WeightApprox. 36.3 kg (80.0 lb.)
Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Battery
Battery TypeLithium
Capacity360 WH (90 WH for each battery)
Battery Voltage 10.8 V
Max. Output Voltage12.6 V
Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery LifeMore than 500 cycles
Cycle Lifetime
Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days
*in cloudy/rainy days (25 °C)
Battery WeightApprox. 3.3 kg (7.3 lb.)
Extended Dimension221 mm × 84 mm × 37.3 mm (8.7" × 3.3" × 1.5")

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
FCC (47 CFR Part 15, Subpart B);
IC (ICES-003: Issue 7)
RF
CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);
ICASA: same as CE-RED
FCC ID (47 CFR Part15 Subpart C);
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
Safety
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
Camera: IP67 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance
