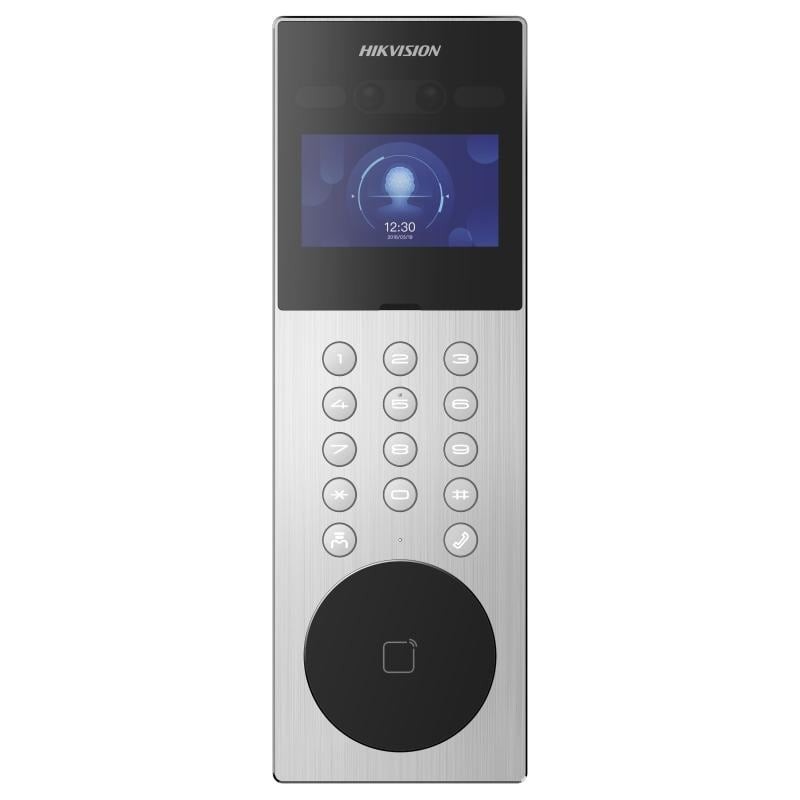

Hikvision DS-KD9203-ME6

SKU:PSDSKD9203ME6
Out-of-Stock
Hikvision DS-KD9203-ME6
€486.20
Tax included
Quantity
compare_arrows add to compare

  • System parameters
  • Operation systemLinux
  • ROM1 GB
  • RAM4 GB
  • ProcessorEmbeded high performance processor
  • Display parameters
  • Screen size4.3-inch
  • Operation method/
  • TypeColorful LCD
  • Resolution800 × 480
  • Video parameters
  • Lens2 MP HD camera
  • Resolution

    Main stream: 1080p@30fps, 720p@30fps

    Sub stream: VGA@25fps, VGA@30fps

  • FOV/
  • Wide dynamic range (WDR)Digital WDR/120 dB
  • Supplement lightIR light, up to 3 m
  • Video compression standardH.264
  • Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG.711 U, G.711 A
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • User capacity10,000
  • Face capacity5,000
  • Card capacity50,000
  • Network parameters
  • Network protocolTCP/IP, RTSP
  • Wi-Fi/
  • Bluetooth/
  • 3G/4G/
  • Device interfaces
  • Alarm input4
  • Network interface1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER1
  • Exit button1
  • RS-4852 RS-485 (Half duplex, HIKVISION)
  • USB/
  • Wiegand/
  • TF card/
  • Alarm output/
  • Lock control1 relays, Max. 30 VDC, 2 A
  • Door contact input1
  • General
  • ButtonPhysical buttons
  • InstallationFlush mounting
  • Indicator/
  • WeightNet weight: 1.186 kg Gross weight: 1.471 kg
  • Protective levelIP65
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
  • Power supply12 VDC, 1.5 A
  • Application environmentOutdoor
  • Power consumption≤ 13 W
  • LanguageEnglish, French, German, Spanish, Italian, Portuguese, Dutch, Czech, Danish, Hungarian, polish, Romanian, Slovak, Indonesian, Burmese, Turkish, Russian, Ukrainian, Arabic
PSDSKD9203ME6

Data sheet
