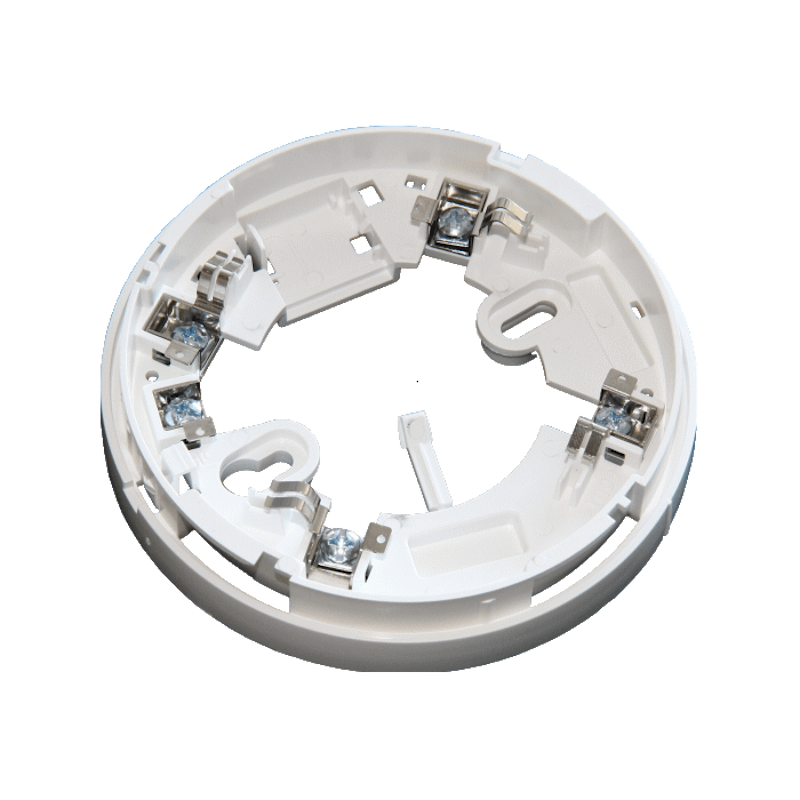

The SensoMAG-B24 is a standard base designed for TELETEK’s SensoMAG series conventional fire detectors (F10, F10B, R20, S30, M40). It features a low-profile design, reliable contact system, and an optional locking mechanism for extra security.
The SensoMAG‑B24 base provides a secure mounting platform for TELETEK’s SensoMAG series conventional fire detectors. Its low-profile design (only 11 mm high) maintains a discreet appearance, while the detector lock ensures extra stability and protection against displacement.
| Parameter | Value |
|---|---|
| Model | SensoMAG-B24 |
| Compatibility | SensoMAG F10, F10B, R20, S30, M40 |
| Profile height | 11 mm |
| Material | ABS plastic |
| Color | White |
| Terminal wire size | up to 3.0 mm² |
| Operating temperature | -10 °C ... +60 °C |
| Humidity | 93 ±3 % @ +40 °C |
| Dimensions | Ø 102 mm × 11 mm |
| Weight | ~42 g |
| Certifications | CE |
