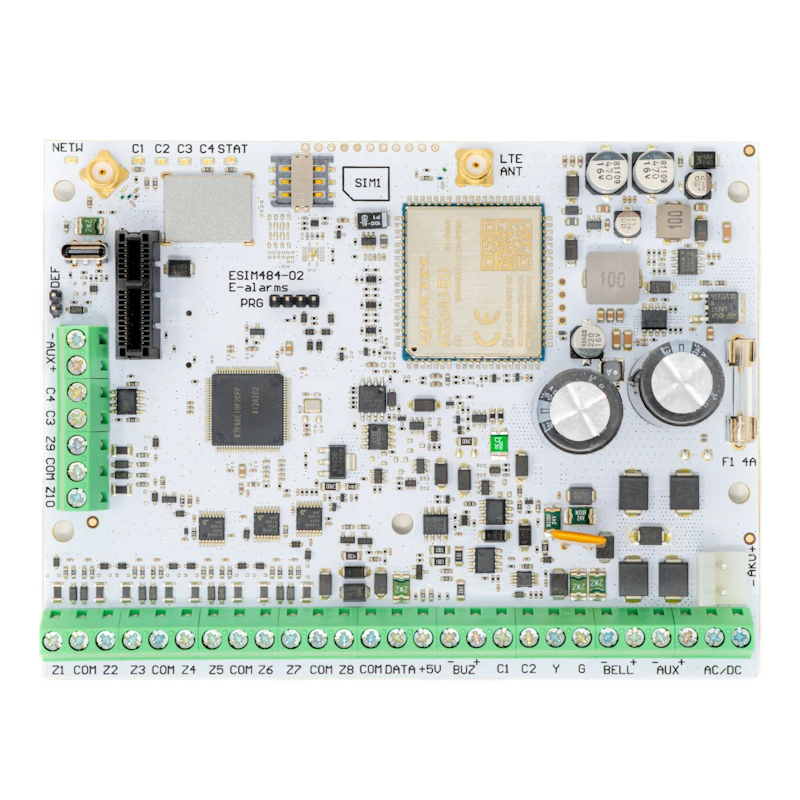

ESIM484 is an advanced hybrid ELDES alarm system with 4G/GSM/GPRS modem, supporting up to 144 zones (10–20 wired, up to 124 wireless), featuring 4 onboard PGM outputs for expansion and support for up to 8 temperature sensors. Control it through the ELDES Security app – including arming/disarming scenarios, HD camera viewing and home automation (garage gates, lighting, heating).
ESIM484 is an advanced hybrid alarm and home automation system by ELDES, designed to secure large apartments, townhouses, or private homes up to 300 m². It combines robust security features with smart automation, allowing users to control lighting, heating, garage gates, irrigation and more through the ELDES Security mobile app.
With built-in GSM/4G and wireless communication modules, ESIM484 requires no external expansion modules. The free ELDES Utility tool ensures easy setup. The system supports up to 144 zones (wired and wireless) and allows expansion of PGM outputs (up to 48) and temperature sensors (up to 8).
The ISM868 MHz frequency technology offers up to 3000 m range in open areas, ensuring reliable signal even in multi-storey buildings or through thick walls.
ESIM484 supports up to 32 unique automation scenarios. Users can control the system via mobile app, SMS, call, wired/wireless keypads, or remote control. Notifications and remote control of connected electrical devices are fully supported.
Connect any RTSP IP camera to the system and view live streams via the ELDES Security app. Camera brand or model is not restricted, giving you full flexibility to build your desired video surveillance system.
Supports Ademco Contact ID, EGR100, Kronos, and SIA IP protocols – fully compatible with most security monitoring companies.
| Parameter | Value |
|---|---|
| Power supply | 16–24 V AC 50/60 Hz ~3 A / 18–24 V DC 3 A |
| Standby current | Up to 80 mA |
| Backup battery voltage / capacity | 12 V; 1.3–7 Ah (lead-acid) |
| Battery charging current | Up to 500 mA |
| Battery charging time | Up to 30 hours (with 7 Ah battery) |
| 2G/4G frequencies | 2G: 900/1800 MHz; 4G: B1/3/5/7/8/20/28, TDD: B38/40/41 |
| SIM card type | Nano SIM |
| Wired zones | 10 (20 in ATZ mode) |
| Wireless zones | Up to 124 |
| Wireless devices | Up to 64 |
| Total number of supported zones | 144 |
| PGM outputs | 4 (2+2 with EPGM1) |
| Temperature sensors supported | Up to 8 |
| Wireless frequency | ISM868 |
| Wireless range | Up to 3000 m (open area) |
| Connectivity | SMS, LTE, Ethernet (ELAN3-ALARM) |
| Supported protocols | Ademco Contact ID, EGR100, Kronos, SIA IP |
| Dimensions | 140 × 100 × 18 mm |
| Operating temperature | -20…+55 °C |
| Humidity | 0–90 % RH @ 0…+40 °C |
Data sheet
