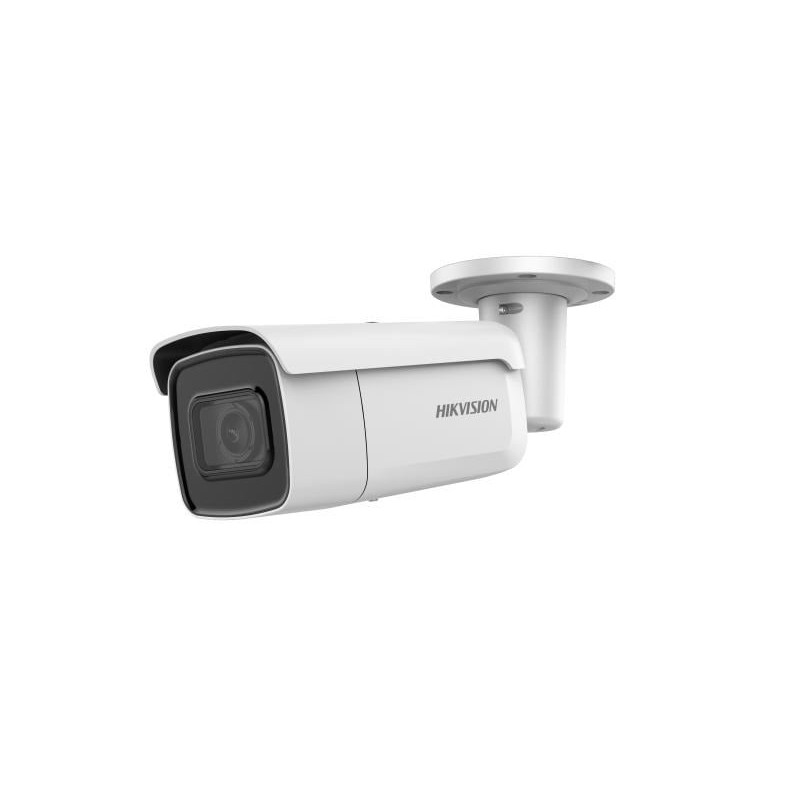

Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Day & Night IR cut filter Shutter Time 1/3 s to 1/100,000 s Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° Lens Focal Length & FOV 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm Aperture F1.4 Lens Mount Ø14 Iris Type Fixed DORI DORI 2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
Illuminator Supplement Light Type IR Supplement Light Range Up to 60 m IR Wavelength 850 nm Smart Supplement Light Yes Video Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Privacy Mask 4 programmable polygon privacy masks Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Reset Key Yes Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning Smart Event Scene change detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General Power 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 15 W
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material ADC12 Dimension 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1") Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") Weight Approx. 1355 g (3.0 lb.) With Package Weight Approx. 2011 g (4.4 lb.) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+ A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Reference
KIP2CD2646G2TIZS2812
