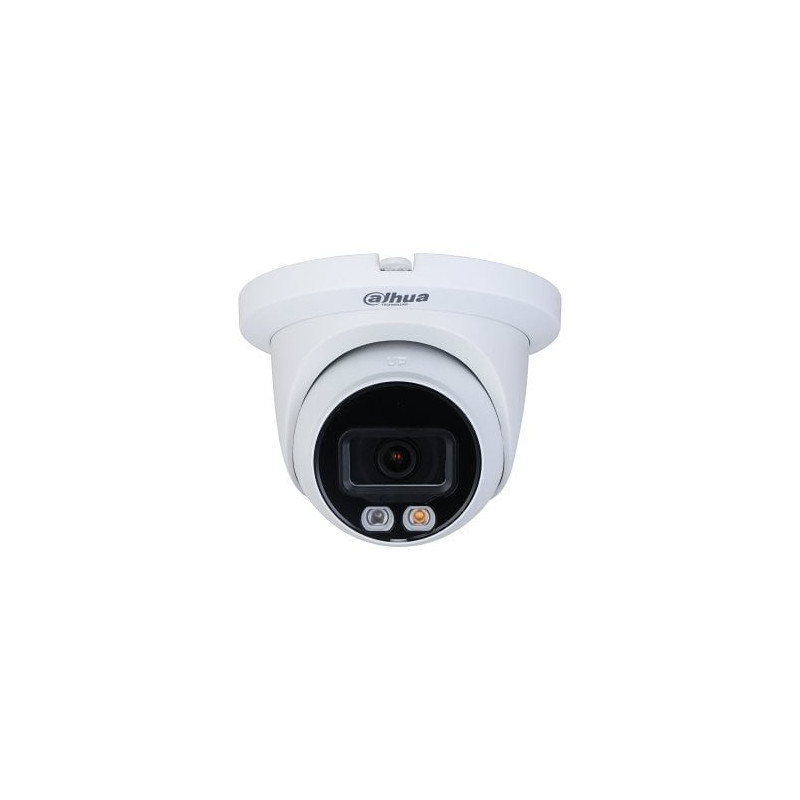

Dome kamera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)

Prekės kodas:DAHIPCHDW2449TSIL

Prieinamumas: Yra sandėlyje

Tipas: dome IP kamera
Prekės ženklas: Dahua
Modelis: IPC-HDW2449T-S-IL-0280B
Technologija: WizSense, dual illumination
Objektyvas: 2.8 mm (95°)
Skiriamoji geba: 4 MP
Vaizdo formatas: H.265
WDR: 120 dB
Vaizdo funkcijos: 3D DNR, HLC, BLC
Apsaugos klasės: IP67, IK10
Integruotas mikrofonas
Apšvietimas: IR + balta šviesa iki 30 m
Maitinimas: PoE
Atmintis: SD iki 256 GB
Darbinė temperatūra: –40°C iki +60°C

105,18 €

Su PVM Pristatysime per 1-3 d.d.

Aprašymas
Prekė detaliau

Bendras
ModelisDH-IPC-HDW2449TM-S-IL
Tipas4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
Vaizdo jutiklis1/2.9" CMOS
Didžiausia raiška2688 × 1520 (4MP)
ROM / RAM128 MB / 128 MB
Skenavimo sistemaProgressive
Minimalaus apšvietimo lygis0.006 lux@F1.6 (Color), 0.0006 lux@F1.6 (B/W), 0 lux (IR/Warm light on)
Apšvietimo atstumas30 m (IR), 30 m (Warm light)
Illuminator Control/CountAuto/Manual; 1 IR LED, 1 Warm light
Pasukimas/krypimas/sukimasPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Objektyvo tipasFixed-focal
Objektyvo tvirtinimasM12
Focal Length Options2.8 mm, 3.6 mm
Max ApertureF1.6
Field of View (2.8 mm)H: 95°, V: 52°, D: 114°
Field of View (3.6 mm)H: 78°, V: 41°, D: 94°
Artimo fokusavimo atstumas2.8 mm: 0.9 m; 3.6 mm: 1.6 m
DORI Distance (2.8 mm)Detect: 63.6 m, Observe: 25.4 m, Recognize: 12.7 m, Identify: 6.4 m
DORI atstumas (3.6 mm)Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m
Intelligent FunctionsPerimeter protection (Intrusion, Tripwire - human/vehicle classification), SMD Plus, Smart Search
Vaizdo glaudinimasH.265, H.264, H.264B, H.264H, MJPEG (sub stream)
Išmanusis kodekasSmart H.265+, Smart H.264+
Kadrų dažnis2688×1520@1–20 fps, 2560×1440@1–25/30 fps (main); 704×576@1–25 fps, 704×480@1–30 fps (sub)
Streams2 streams
Supported Resolutions4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Bitrate Control / Bit RateCBR/VBR; H.264: 32–6144 kbps, H.265: 12–6144 kbps
Dienos/nakties režimasAuto(ICR)/Color/B/W
WDR120 dB
BLC / HLCYes / Yes
Baltos spalvos balansasAuto, Natural, Street lamp, Outdoor, Manual, Regional Custom
Stiprinimo valdymasAuto / Manual
Triukšmo mažinimas3D NR
Judesio aptikimas4 configurable areas
Region of Interest (ROI)4 areas
Vaizdo pasukimas0° / 90° / 180° / 270° (up to 2688×1520 resolution)
Mirror / Privacy MaskingYes / 4 areas
GarsasMIC Built-in, G.711a, G.711Mu, PCM, G.726
Pavojaus įvykiaiNo SD card, SD error/full, network disconnection, IP conflict, illegal access, motion detection, video tamper, tripwire, intrusion, voltage, security exception, SMD
Tinklo sąsajaRJ-45 (10/100 Base-T)
Tinklo protokolaiIPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
SDK & APIYes
SuderinamumasONVIF (Profile S/G/T), CGI
Max Users6 users (36 Mbps total bandwidth)
AtmintisFTP, SFTP, Micro SD card up to 256 GB
Browser CompatibilityIE, Chrome, Firefox
Valdymo programinė įrangaDSS, DMSS
Mobilioji programaiOS, Android
CybersecurityTrusted execution, X.509 certs, HTTPS, video encryption, syslog, WSSE, 802.1x, IP/MAC filtering, trusted boot, secure upgrade
Maitinimo šaltinis12 VDC / PoE (802.3af)
Energijos suvartojimasBasic: 2.1 W (DC), 2.5 W (PoE); Max: 4.4 W (DC), 5.2 W (PoE)
Darbinė temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
Sandėliavimo temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
Drėgmė≤95%
Apsauga nuo dulkių ir drėgmėsIP67
Korpuso medžiagaMetal (core & cover), Plastic (decor ring)
Matmenys99.1 × Φ121.9 mm (3.90" × Φ4.80")
Net Weight / Gross Weight0.46 kg (1.01 lb) / 0.65 kg (1.43 lb)
SertifikataiCE-LVD (EN62368-1), CE-EMC (Directive 2014/30/EU), FCC Part 15 Subpart B, UL/CUL (UL62368-1 & CAN/CSA C22.2 No. 62368-1-14)
Included / Optional AccessoriesOptional: PFA130-E (Junction Box), PFB205W-E (Wall Mount), PFA152-E (Pole Mount), PFA109 (Mount Adapter), PFB220C (Ceiling Mount), PFM321D (12VDC 1A Adapter), PFM900-E (Mount Tester), TF-P100 (MicroSD Card)
