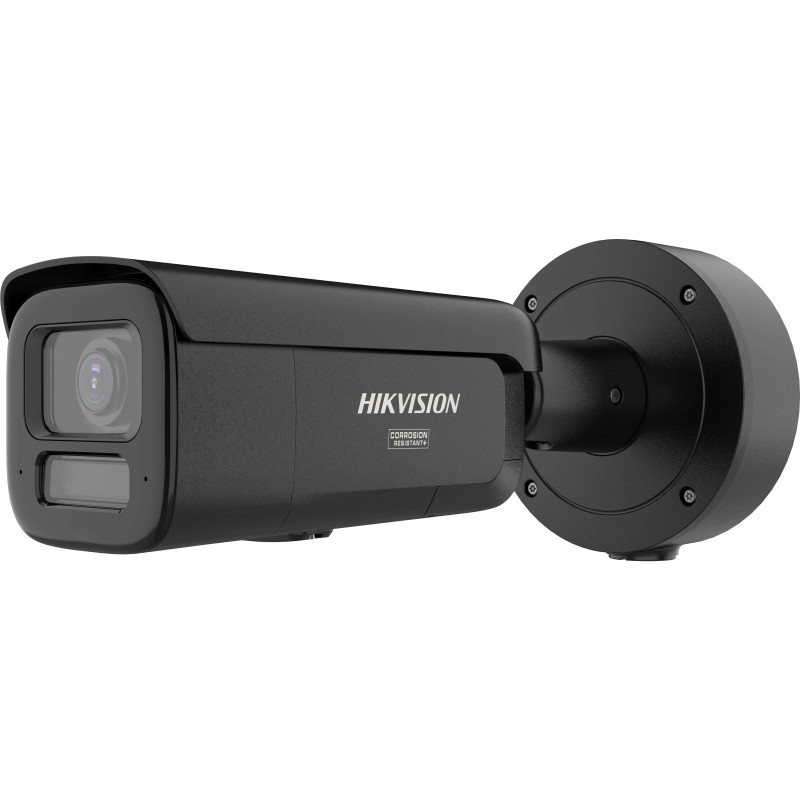

Kamera Vaizdo jutiklis 1/1.8" Progressive Scan CMOS Maks. rezoliucija 2688 × 1520 Min. apšvietimas Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light Užrakto greitis 1 s to 1/100,000 s Diena&Naktis IR cut filter Kampo keitimas Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Objektyvas Objektyvo tipas Varifocal lens, motorized lens, 2.8 to 12 mm Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° Lęšio montavimas Integrated Rainelės tipas Fixed Diafragma F1.2 Ryškumo gylis 1 m to ∞ DORI DORI Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m Apšvietimas Papildomo apšviešimo tipas White Light,IR Papildomo apšvietimo diapazonas Up to 60 m Išmanus papildomas apšvietimas Yes IR bangos ilgis 850 nm Vaizdas Pagrindinis srautas 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings. Vaizdo glaudinimas Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings. Vaizdo bitų dažnis 32 Kbps to 8 Mbps H.264 tipas Baseline Profile,Main Profile,High Profile H.265 tipas Main Profile Bitų dažnio valdymas CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream Garsas Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Garso tipas Mono sound Garso bitų dažnis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Pašalinių garsų šalinimas Yes Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/48 kHz Tinklas Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Tiesioginis vaizdo žiūrėjimas Up to 6 channels API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP Naudotojas/prievadas Up to 32 users3 user levels: administrator, operator, and user Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) Klientas iVMS-4200,Hik-Connect,Hik-Central Naršyklė Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,Local service: Chrome 80+, Firefox 80+, Edge 89+ Nuotrauka Nuotraukos parametrų keitiklis Yes Vaizdo nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Diena/Naktis režimas Day,Night,Auto,Schedule Nuotraukų pagražinimas BLC,HLC,3D DNR,Distortion Correction,Defog SNR ≥ 52 dB Wide Dynamic Range (WDR) 130 dB Vaizdo stabilizavimas EIS Privatumo kaukė 4 programmable polygon privacy masks Sąsaja Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Įmontuotas garsiakalbis Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB. Garsas Built-in Microphone: Arrayed dual-microphone1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Signalizacija 2 input, 2 output (max. 24 VDC/24 VAC, 1 A) Perkrovimo mygtukas Yes Funkcijos Pagrindinės funkcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Išmaniosios funkcijos Scene change detection Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing Išmaniosios funkcijos Veido atpažinimas Yes Perimetro apsauga Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Bendras Energija 12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 18 W Medžiaga Front cover: Metal, body: Metal, bracket: Metal Matmenys Ø140 mm × 333.8 mm (Ø5.51" × 13.14") Pakuotės dydis 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") Svoris Approx. 1555 g (3.4 lb.) Svoris su įpakavimu Approx. 2326 g (5.1 lb.) Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Flashing Light /SRB model: Red and Blue Light/SL model: White Light Patvirtinimai EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 Saugumas UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017 Aplinkosauga CE-RoHS: 2011/65/EU Apsauga IP67: IEC 60529-2013,IK10: IEC 62262:2002 Apsauga nuo korozijos NEMA 4X (NEMA 250-2018)
Kodas
KIP2647G3LIZS2UYSLJ
