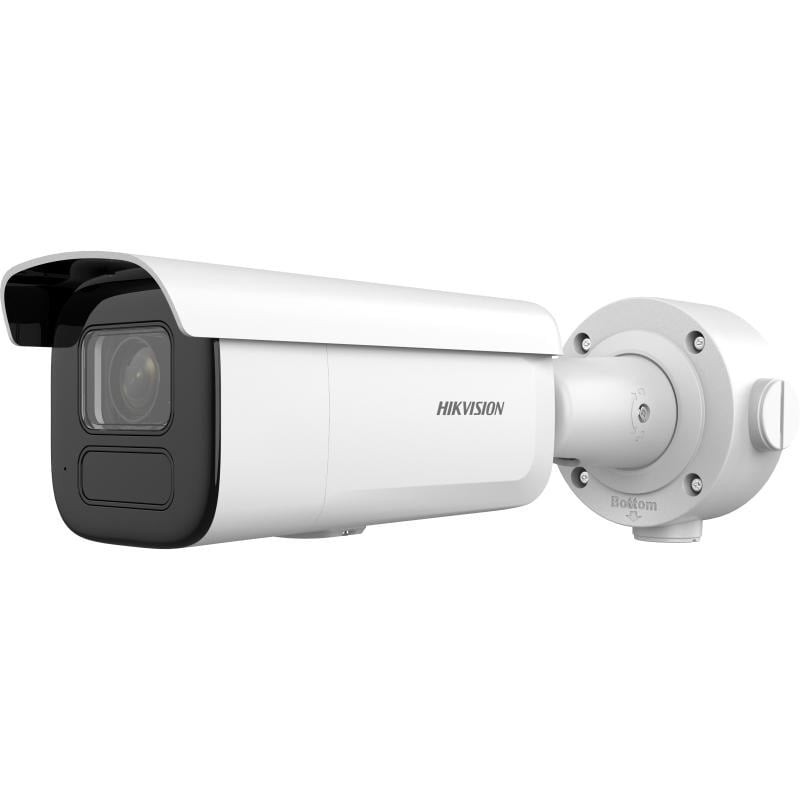

Hikvision Bullet DS-2CD3686G2T-IZS(H) F2.7–13.5 (8MP, AcuSense, Darkfighter, IR 40m)

Prekės kodas:KIPDS2CD3686G2TIZSH

Prieinamumas: Yra sandėlyje

Aiškus vaizdas esant stipriam foniniam apšvietimui dėl 120 dB tikros WDR technologijos
Aukštos kokybės 8 MP raiškos vaizdas
Efektyvi H.265+ glaudinimo technologija
Žmonių ir transporto priemonių klasifikavimas naudojant giluminį mokymąsi
Garso ir aliarmo sąsajos
Atspari vandeniui ir dulkėms (IP67), atspari vandalizmui (IK10)
Puikus veikimas esant silpnam apšvietimui su „DarkFighter“ technologija
3D DNR technologija užtikrina švarų ir ryškų vaizdą
Motorizuotas varifokalinis objektyvas patogiam montavimui

343,60 €

Su PVM Pristatysime per 1-3 d.d.

Patvirtinimai
Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
EMCFCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Garsas
Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

DORI
DORI2.7 to 13.5 mm: Wide: D: 86 m, O: 34 m, R: 17 m, I: 8 m Tele: D: 192 m, O: 76 m, R: 38 m, I: 19 m7 to 35 mm: Wide: D: 200 m O: 79 m R: 40 m I: 20 m Tele: D: 580 m O: 230 m R: 116 m I: 58 m

Išmaniosios funkcijos
Veido atpažinimasYes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Išmaniosios funkcijosUnattended baggage detection, object removal detection, scene change detection, audio exception detection

Bendrieji duomenys
MatmenysØ105.1 mm × 341.8 mm (Ø4.14" × 13.5")
Pagrindinės funkcijosHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaAluminum alloy body
Pakuotės dydis385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Energija 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 15 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 1335 g (2.9 lb.)
Svoris su įpakavimuApprox. 2161 g (4.8 lb.)

Apšvietimas
IR bangos ilgis850 nm
Išmanus papildomas apšvietimasYes
Papildomo apšvietimo diapazonas2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m
Papildomo apšviešimo tipasIR

Nuotrauka
Diena/Naktis režimasDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR
Nuotraukos parametrų keitiklisYes
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Alarm 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A)
Garsas1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Išėjimo galia12 VDC, max. 100 mA (supported by all power supply types)
Perkrovimo mygtukasYes

Objektyvas
Diafragma2.7 to 13.5 mm: F1.4; 7 to 35 mm: F1.6
Focal Length & FOV2.7 to 13.5 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°;7 to 35 mm: horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17°
Rainelės tipasAuto-iris
Lęšio montavimas2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated
Objektyvo tipasVarifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional

Tinklas
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
KlientasiVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP, WebSocket, WebSockets
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+

Vaizdas
Bitų dažnio valdymasCBR,VBR
Ketvirtas srautas50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Tikslinis apkarpymasYes
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Vaizdo bitų dažnis32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,*Third stream and fourth stream are supported under certain settings.
