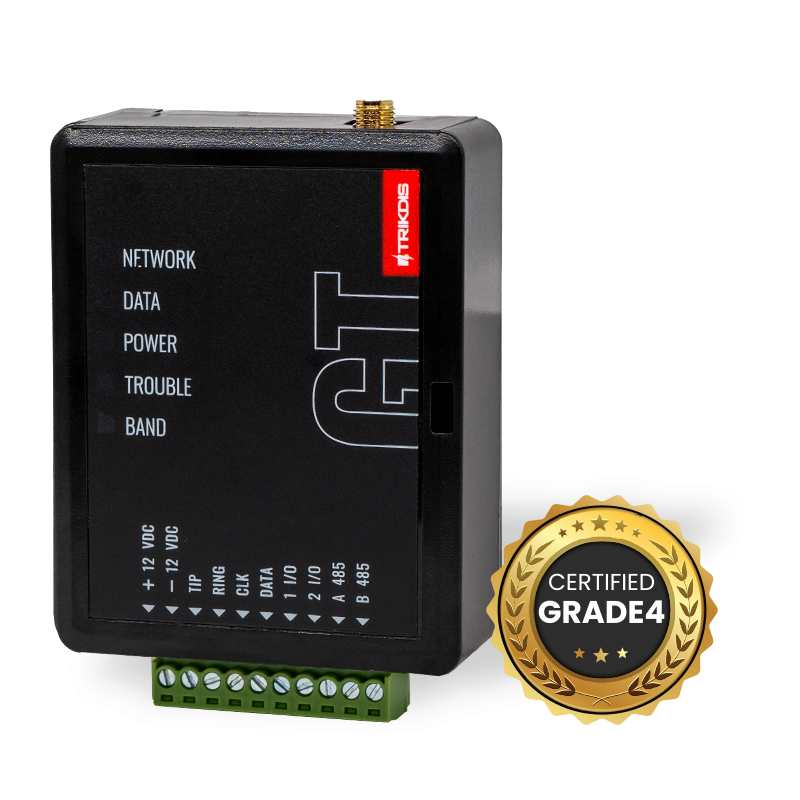

The TRIKDIS TRI-GT-4G is a GSM communication module designed to transmit alarm system event messages over 4G cellular internet to a central monitoring station or the Protegus application. The module features two programmable I/O terminals, RS-485 interface, and supports multiple event reporting protocols (TRK8, DC-09, TL150), ensuring flexible and reliable connectivity with security systems.
The TRI-GT-4G GSM communicator is designed to transmit event messages from an alarm control panel to a monitoring station receiver or the Protegus app. The communicator supports 4G cellular connectivity, IP channels and various reporting protocols, making it suitable for professional monitoring and security applications.
The module sends event notifications with event codes to monitoring receivers or apps, supports remote Arm/Disarm via Protegus, push notifications, and control of connected devices. The two programmable I/O terminals can be configured as inputs or controllable outputs, and the RS-485 bus allows integration with external devices.
The communicator integrates easily with alarm control panels using TIP/RING or Serial BUS interfaces. Supported reporting protocols include TRK8, DC-09_2007, DC-09_2012, and TL150, allowing compatibility with a wide range of monitoring receivers.
| Parameter | Value |
|---|---|
| Connectivity | 4G LTE GSM |
| I/O | 2 programmable IN/OUT |
| Expansion | Supports iO-8 expanders |
| Modem | EG915U-EU LTE FDD |
| GSM Bands | B2/B3/B5/B8 |
| Protocols | TRK8, DC-09_2007, DC-09_2012, TL150 |
| Power supply | 10–18 V DC |
| Operating temperature | -10 °C to +50 °C |
| Dimensions | 92 × 62 × 26 mm |
| Weight | 80 g |
The TRIKDIS TRI-GT-4G is a GSM communication module designed to transmit alarm system event messages over 4G cellular internet to a central monitoring station or the Protegus application. The module features two programmable I/O terminals, RS-485 interface, and supports multiple event reporting protocols (TRK8, DC-09, TL150), ensuring flexible and reliable connectivity with security systems.
