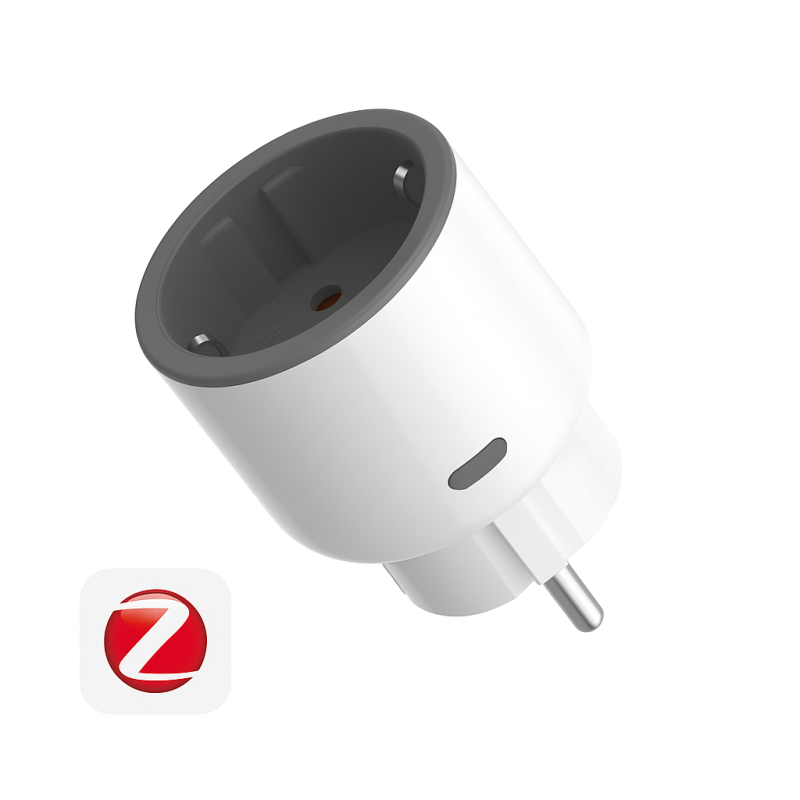

iPlug Zigbee Smart Plug Sonoff S60ZBTPF

iPlug Zigbee Smart Plug Sonoff S60ZBTPF

Technical Information:

Input: 250V~50/60Hz MAX 16A
Maximum load: 4000W
Wireless: Zigbee3.0
Housing material: PC V0
Applicable location: indoors
Operating temperature: -10°C~40°C
Dimensions: 50x50x61.5 mm

Main functions

• Zigbee 3.0 connectivity works with eWeLink, Home Assistant (Zigbee2MQTT, ZHA), SmartThings, etc.

• Integrated Energy Monitoring – displays real-time and historical power, current, voltage and energy consumption.

• Open Current Protocol – acts as a Zigbee maršrouter.

• Overload protection, short circuits – has protection against overcurrent &scaron & lightning.

• Warnings and scenarios – can set voltage, current, power limits and receive alerts via eWeLink.

Uses

1. Šmonitoring of an aquarium or aquarium

   • Monitor energy consumption, set up alerts if the price is too high or if there is a power failure.

2. Energy saving

   • Analyse your home's electricity consumption & compare real data and save.

3. Site and appliance management

   • Control fans, lamps, etc., set timers, scenarios, voice control (Alexa, Google).

4. Zigbee network reinforcement

   • When using the EU version, include as a mar&scaron router to improve network coverage.

5. Smart warning scenes

   • For example: if the washing machine current does not change for more than 5 minutes, it is notified that the cycle is finished.

6. Protection against electrical problems

   • Išswitches off if the voltage is too low/cold– protects appliances from damage.

7. Home Assistant integration

   • Works perfectly via Zigbee2MQTT – individual DAtaPoint’s: power, current, voltage, energy, along with on/off control. ZHA also supports
