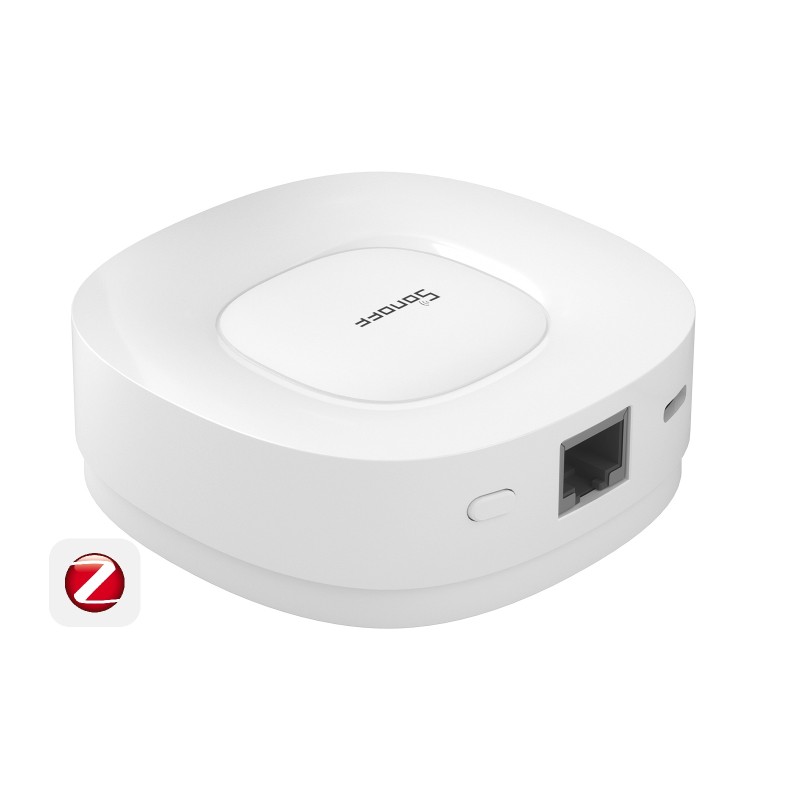

ZBBridge-U
Technical information:
MCU RV1109+EFR32MG21
Input 5V⎓1A
Wireless connection Wi-Fi IEEE 802.11b/g/n 2.4GHz, Zigbee 3.0
Power supply interface type Type-C
Network interface type RJ45 (10/100Mbps)
Net weight 92.5g (Accessories not included)
Product dimension 82x82x28mm
Color White
Casing materials PC+ABS
Applicable place Indoor
Working temperature -10℃~40℃
Working humidity 5%~95% RH, non-condensing
Working height Less than 5000m
Certification CE/FCC/ISED/RoHS
Executive standard EN 62368-1
Use Cases:
Connecting Zigbee devices – This is the main purpose of the ZBBridge-U: to connect various Zigbee devices into a single network.
Smart home automation via eWeLink – Using the eWeLink app (Android/iOS), you can create automation scenarios.
Voice control – By linking with Amazon Alexa or Google Assistant, you can control Zigbee devices using voice commands.
Works as a Zigbee → Wi-Fi bridge – The ZBBridge-U allows Zigbee devices to be controlled over a Wi-Fi network.
Integration with other platforms – Compatible with Home Assistant, MQTT, Tasmota, and more.
