- Screen
- Size7" TFT-LCD
- Resolution800 × 480 RGB
- BacklightLED
- BrightnessAdjustable
- Visual Angle130°
- SystemPAL/NTSC
- Display ModeMode 1: Manual switch ,Mode 2: Auto switch
- Physical buttons
- 5 ButtonsM (Short press to switch and long press to pop up the menu.); ▲ (Volume up); ▼ (Volume down); OK; Power switch
- Interface
- Mobile DVR Video Output1-ch. 2*7 plug, connecting to the mobile DVR.
- Rear-view Camera Video Input1-ch. Four-pin aviation male plug, connecting to the rear-view camera.
- The Other Camera Video Input1-ch (reserved). Four-pin aviation male plug, connecting to the other camera.
- Alarm Input2-ch
- Others
- Mounting TypeEmbedded mounting;Bracket mounting
- General
- Working Temperature-20° C to +70° C (-4° F to +158° F)
- Working Humidity10% to 95%
- Ingress ProtectionIP54

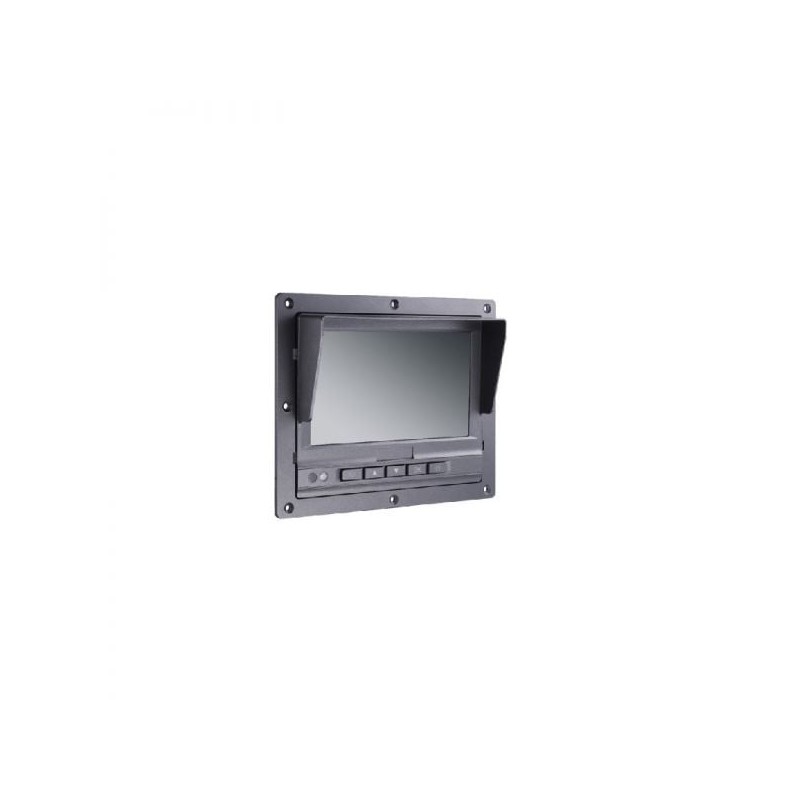

M7DSMP1302BRACKET
