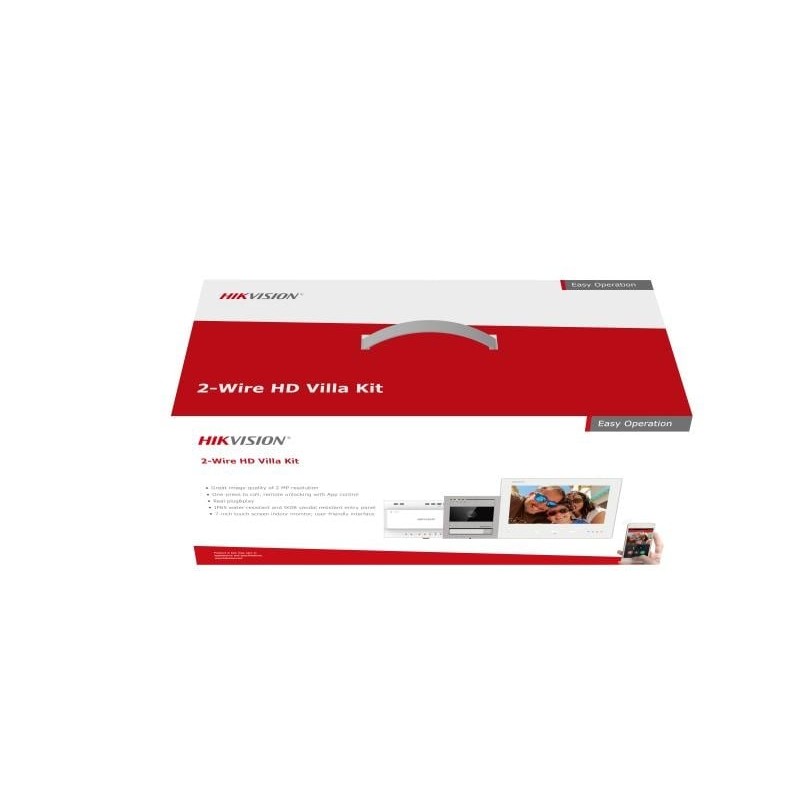

Hikvision Analog 2-Wire Intercom Kit DS-KIS704EY

SKU:PSMDSKIS704EY
On Stock
Hikvision Analog 2-Wire Intercom Kit DS-KIS704EY
€484.02
Tax included Delivery within 1–3 business days
Quantity
compare_arrows add to compare

  • Door station/Audio parameters
  • Audio compression bitrate64 Kps
  • Audio compression standardG.711 U, G.711 A
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Door station/Capacity parameters
  • Linked indoor station capacityMax.99
  • Sub door station capacity16
  • Door station/Device interfaces
  • Alarm input2（supports Exit button or Door contact input）
  • DIP Switch6 decimal DIP switch
  • Debugging port1
  • Door contact input1
  • Exit button1
  • Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Power supply input12VDC input
  • RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • TAMPER1
  • Two-Wire1
  • Door station/General
  • Application environmentOutdoor
  • Button0-2（Flexible adjustment）
  • Dimension (W × H × D)99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Indicator4 LED lights(Opening door、Calling、Intercom、In use）
  • InstallationSurface mounting & flush mounting
  • LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
  • Power consumption≤ 6 W
  • Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Protective levelIP65 IK08
  • Working humidity10% to 90%
  • Working temperature-40° C to 60° C (-22° F to 140° F)
  • Door station/Network parameters
  • Wi-FiOnly AP mode for configuration
  • Wireless network10/100 Mbps self-adaptive through 2-wire interface
  • Door station/Screen parameters
  • Operation methodNA
  • ResolutionNA
  • Screen sizeNA
  • TypeNA
  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • ProcessorEmbedded Processor
  • RAM256 MB
  • ROM4 GB
  • Door station/Video parameters
  • FOVHorizontal: 133°, Vertical: 82°
  • Lens1
  • Resolution2MP
  • Supplement lightSupplement light Low illumination, IR supplement lights
  • Video compression standardH.264
  • Wide dynamic range (WDR)Support
  • Video Audio Distributor/General
  • Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
  • Indicators6 Signal indicators; 1 Power indicator
  • InstallationDIN rail installation
  • Power consumptionCH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
  • Power supply48VDC
  • Working humidity10% to 90% (no-condensing)
  • Working temperature-10 °C to 5 °C (14 °F to 131 °F)
  • Video Audio Distributor/Interfaces
  • Power interface48VDC
  • Two-wire interface6("IN""OUT" for casacading, CH1-CH4 for Door station and Indoor station)
PSMDSKIS704EY

Data sheet
