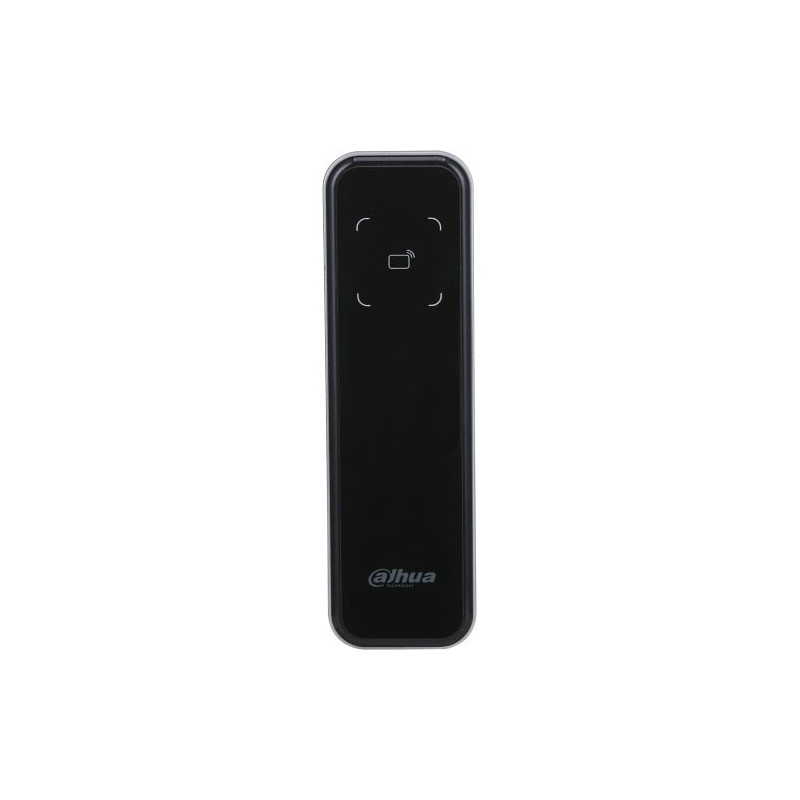

Card reader Dahua ASR2200A (Mifare, Wiegand, RS-485, IP66)

SKU:DAHASR2200A
On Stock
  • Category: Card reader
  • Brand: Dahua
  • Model: ASR2200A
  • Card type: MIFARE
  • Interfaces: Wiegand (W34), RS-485
  • Protection class: IP66
  • Power supply: 12 V DC, 0.5 A
€37.62
Tax included Delivery within 1–3 business days
Quantity
compare_arrows add to compare

  • General
  • Product TypeSlim Card Reader
  • BuzzerYes
  • CasingTempered glass / PC
  • Unlock ModeCard swiping
  • Card TypeIC card
  • Modulation TypeAM
  • Frequency Range13.56 MHz
  • Max Transmission Power42 dBuA/m @10 m
  • Response Time0.1 s
  • Card Reading Distance0 cm–5 cm (0"–1.97")
  • RS-485 Port1 channel
  • Wiegand Output1 output channel
  • Tamper AlarmYes
  • Power Supply12V 0.5A DC
  • Protection RatingIP66 (silicon sealant required, see manual)
  • Power ConsumptionStandby ≤ 0.9W, Working ≤ 1.7W
  • Product Dimensions135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W × H)
  • Packaging Dimensions (Inner Carton)195 mm × 75 mm × 52 mm (7.68" × 2.95" × 2.05")
  • Packaging Dimensions (Carton)415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06")
  • Operating Temperature–30°C to +70°C (–22°F to +158°F)
  • Operating Humidity5% RH–95% RH (non-condensing)
  • Operating EnvironmentIndoor; Outdoor
  • Gross Weight0.16 kg (0.35 lb)
  • Installation MethodSurface mount
  • CertificationsCE; FCC
DAHASR2200A
