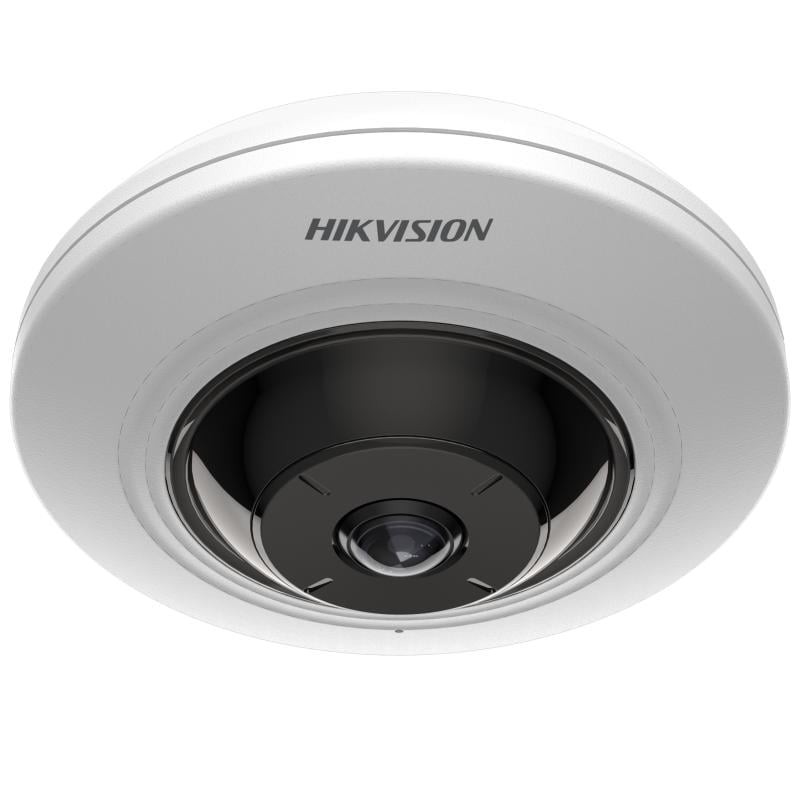

Hikvision fisheye DS-2CD3956G2-ISU F1.05

SKU:KIPDS2CD3956G2ISUF1

Availability: Out-of-Stock

I agree to the terms and conditions and the privacy policy Read the terms and conditions of use.

€356.42

Tax included

Lens
Lens Type Fixed focal lens, 1.05 mm
Focal Length & FOV 1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Lens Mount M12
Iris Type Fixed
Aperture F2.25
Depth of Field 0.1 m to ∞

Video
Main Stream
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
2560 × 1920, 2048 × 1536, 1280 × 960
180 Panorama View:
2048 × 1152, 1280 × 720
180 Dual Channel Panorama View:
4096 × 576，2048 × 288
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 1200 × 900
Fisheye + 3PTZ View:
camera 01: 2048 × 1536, 1280 × 960
camera 02/camera 03/camera 04: 1200 × 900
Sub-Stream
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
640 × 480, 640 × 360
180 Panorama View:
640 × 480, 640 × 360
Fisheye + 3PTZ View:
camera 01: 640 × 480, 640 × 360
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes

Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in Microphone -U: Yes
Audio
1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes

Event
Basic Event Motion detection,video tampering alarm,exception
Linkage Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function
People Counting
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle
Queue Management Supports up to 4 detection regions, and independent arming schedule and linkage method
Heat Map
Yes

General
Power
12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
Dimension
Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6\")"
Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Weight Approx. 320 g (0.7 lb.)
With Package Weight Approx. 510 g (1.1 lb.)
General Function Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Storage Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
