Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°
Lens Focal Length & FOV 2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1° Focus Auto, semi-auto, manual Iris Type P-iris Aperture F1.0 to F1.2
DORI DORI Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m
Tele: D: 140.7 m, O: 55.8 m, R: 28.1 m, I: 14.1 m
Illuminator IR Wavelength 850 nm Smart Supplement Light Yes Supplement Light Range 2.8 to 12 mm: 30 m Supplement Light Type Hybrid (IR and White Light)
Video Main Stream 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Target Cropping Yes Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed region(s) for each stream
Audio Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz Audio Type Mono sound Environment Noise Filtering Yes
Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets Simultaneous Live View Up to 20 channels API ONVIF, ISAPI, SDK, ISUP User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Image Image Parameters Switch Yes Image Settings Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger Wide Dynamic Range (WDR) 140 dB Privacy Mask 8 programmable polygon privacy masks, mask color or mosaic configurable SNR ≥ 52 dB Image Enhancement BLC,HLC,3D DNR,Defog, EIS Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Interface Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB Audio 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Built-in Microphone Yes, 2 built-in microphones Alarm 1 input, 1 output (max. 24 VDC, 1 A) Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Reset Key Yes Power Output 12 VDC, max. 100 mA Wiegand 1 Wiegand (CardID 26bit,SHA-1 26bit,Hik 34bit, NEWG 72 bit)
Event Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
Deep Learning Function Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic Road Traffic and Vehicle Detection
Blocklist and allowlist: up to 10000 records
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
License plate recognition rate ≥98%
General Power 12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block;
24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block;
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W
Material Aluminum alloy body Dimension Ø160 × 159.5 mm (Ø6.3" × 6.3") Package Dimension 251 × 215 × 189 mm (9.9" × 8.5" × 7.4") Weight Approx. 2100 g (4.62 lb.) With Package Weight Approx. 2850 g (6.28 lb.) Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat,anti-banding,one-key reset,mirror,password protection,privacy mask, watermark, IP address filter, flash log, control timeout Heater Yes Demist Yes
Approval EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002 Anti-Corrosion Protection -Y model: NEMA 4X (NEMA 250-2018) Automotive and Railway EN50121-4 Other PVC FREE
Reference

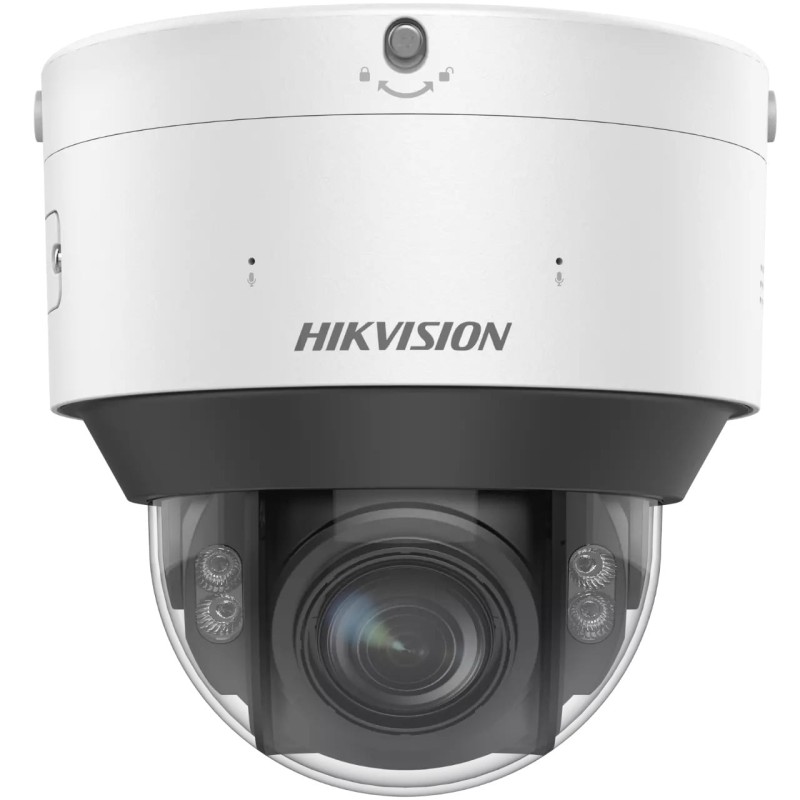

KIPIDS2CD7547G0PXZHS
